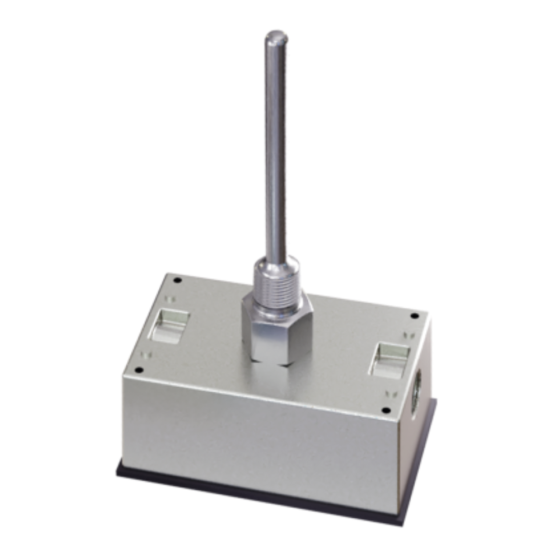

Type 2 Immersion Thermister 4" 10kΩ

FEATURES

The ACI Thermistor Immersion Series features a 6.35 mm (¼ in) diameter stainless-steel probe with two, 35.6 mm (14 in), 0.65 mm (22 AWG) Etched PTFE colored lead wires depending on the probe length ordered to differentiate the different sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture and to increase the response times using our high quality, thermally conductive epoxy. The immersion sensors include a welded thermowell.

• The ACI Thermistor Immersion Series is covered by ACI's Five Year Limited Warranty.

SPECIFICATIONS

• Sensor Type: Thermistor
• Sensor Curve: Non-Linear, NTC (Negative Temperature Coefficient)
• Number Sensing Points: One
• Number Wires: Two (Non-Polarity Sensitive)
• Sensor Output at 25 °C (77 °F): 10 kΩ nominal
• Accuracy 0 °C to 70 °C (32 °F to 158 °F): ±0.2 °C (±0.36 °F)
• Response Time (63 % Step Change): 10 seconds nominal
• Power Dissipation Constant: 3 mW / °C
• Sensor Operating Temperature Range: -40 °C to 150 °C (-40 °F to 302 °F)
• Enclosure Specifications (Temperature, Flammability, NEMA/IP Ratings): Aluminum, -40 °C to 121 °C (-40 °F to 250 °F), Plenum Rated, NEMA 3R
• Storage Temperature Range: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity Range: 10 % to 95 % RH, non-condensing
• Probe Diameter: 6.35 mm (0.25 in)
• Thermowell Bore Diameter: 6.6 mm (0.26 in)
• Probe Material: 304 Stainless Steel
• Thermowell Material: 304 Stainless Steel
• Thermowell Instrument: ½ in NPS (National Pipe Straight) Female Thread
• Process Thread Size: ½ in NPT (National Pipe Tapered) Male Thread
• Fitting Material | Flammability Rating: Polyamide 66 (High Performance Nylon 66) | UL94-HB
• Fitting Thread Size: ½ in NPS (National Pipe Straight) Male Thread
• Foam Pad Material | Flammability Rating: Neoprene/EPDM/SBR Polymer | UL94-HBF; FMVSS-302; MIL-R-6130C
• Lead Length: 35.6 cm (14 in)
• Conductor Size: 0.65 mm (22 AWG)
• Lead Wire Insulation | Wire Rating: Etched PTFE Colored Leads | Mil Spec 16878/4 Type E)
• Conductor Material: Silver Plated Copper
• Agency Approvals: CE, UKCA, RoHS2, WEEE
