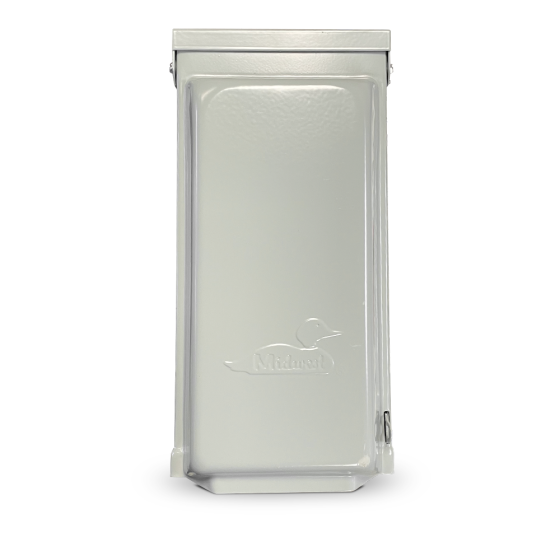

60A Fusible Disconnect 240Vac, 3 Phase, NEMA 3R
Item
U0653F
APPLICATIONS
Metallic, 60A Fusible disconnects. Pullers are removable or reinstall able in the OFF position for user safety during equipment maintenance. Listed for use as service entrance.
FEATURES & BENEFITS
• Phase: 3
• Amps: 60 A
• Enclosure: Metallic
• Circuit Protection: Fused Pull-Out
• Receptacles: None
• AIC: 10,000
• Cabinet Size: 6 X 14
• Horse-Power Rating: 7.5-15
• Neutral Bar: None
• Unit Weight: 8.5 lb.
• Volts: 240
• Certification: UL/CUL
| Electrical | |
|---|---|
| Phase | 3 | Voltage | 240 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Amp Rating | 60 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 8.9 | Exterior Dimensions (D) (inches) | 14.500000 | Exterior Dimensions (W) (inches) | 6.800000 | Exterior Dimensions (H) (inches) | 5.300000 | Shipping Weight (lbs) | 10.000000 |
