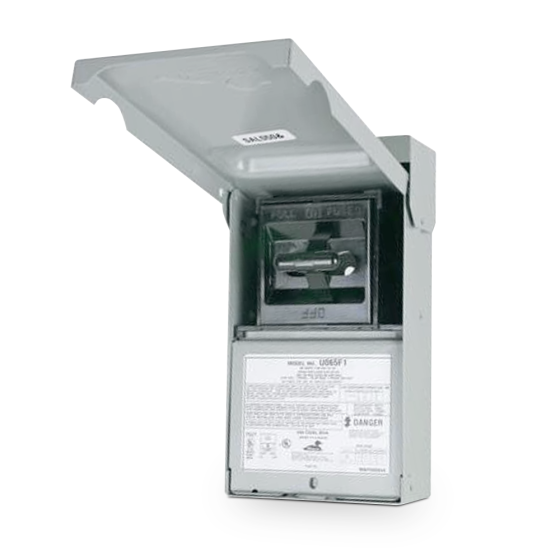

60A Fusible Disconnect 120/240Vac, 1 Phase, NEMA 3R
Item
U065F1
APPLICATIONS
Metallic, Fusible disconnects are available in 30 and 60 Ampere models. Pullers are removable or reinstall able in the OFF position for user safety during equipment maintenance. Listed for use as service entrance.
FEATURES & BENEFITS
• Phase: 1
• Amps: 60 A
• Enclosure: Metallic
• Circuit Protection: Fused Pull-Out
• Receptacles: None
• AIC: 10,000
• Cabinet Size: 5 X 9
• Horse-Power Rating: 10
• Neutral Bar: None
• Unit Weight: 3.5 lb.
• Volts: 120/240
• Certification: UL/CUL
| Electrical | |
|---|---|
| Phase | 1 | Voltage | 120/240 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Amp Rating | 60 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3.25 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 5.250000 | Exterior Dimensions (H) (inches) | 8.630000 | Shipping Weight (lbs) | 4.000000 |
