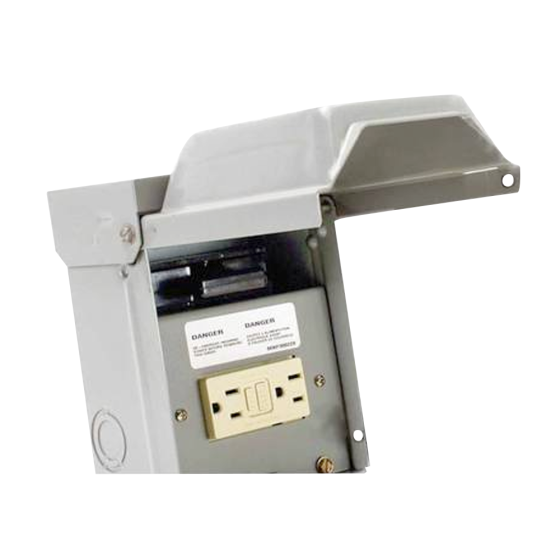

60A Non-Fusible Disconnect 240Vac, 1 Phase, 15A GFI Receptacles, NEMA 3R
Item
U065P010
APPLICATIONS
Metallic, 60A A/C Disconnect with 15A GFCI Receptacle. Non-fusible disconnect pullers are removable or reinstall able in the OFF position for user safety during equipment maintenance.
FEATURES & BENEFITS
• Phase: 1
• Amps: 60 A
• Enclosure: Metallic
• Circuit Protection: Non-Fused Pull-Out
• Receptacles: 5-15R2GFCI
• AIC: 10,000
• Cabinet Size: 5 X 7
• Horse-Power Rating: 10
• Neutral Bar: None
• Unit Weight: 4.3 lb.
• Volts: 120/240
• Certification: UL/CUL
| Electrical | |
|---|---|
| Phase | 1 | Voltage | 240 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Amp Rating | 60 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 2.110000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 20.000000 |
