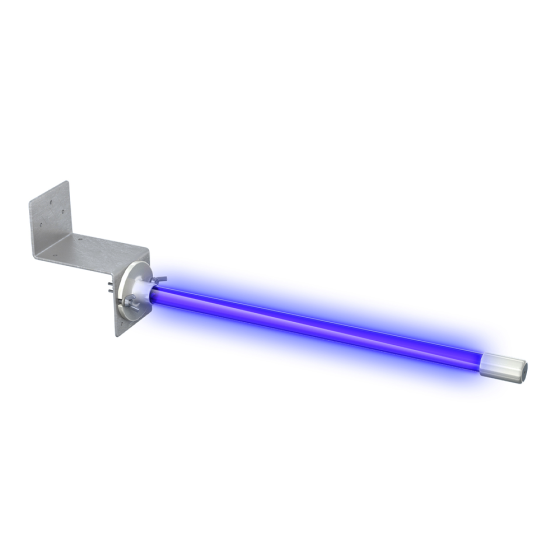

Totaline® UV Germicidal Purification Lamp 15", 24V, 18W
Item
UV1-FC-S-15
FEATURES
The Totaline® Germicidal Purification unit is a convenient, non-ozonating Ultraviolet Air Treatment System. It features a non-ozonating, 254 nanometer UVC lamp with a magnetic base to allow quick & convenient retrofits. It includes a Delta plate option as well as convenient 24-volt connection. The UV Single Lamp Germicidal Purification System helps disinfect & deactivate airborne molds, bacteria, virus and microorganisms in addition to coil irradiation & surface treatment. Lamps are 9000 Hr.
SPECIFICATIONS
• Electrical Power: 24V• Lamp Dimensions: (15”) 14.25” x .75 dia
• Lamp Life (Hours): 9,000
• Lamp Wattage: 18
• Lamp Type: 254 UVC
• UV Output (uw/cm @ 2.5’): 93
• Amp Draw: 0.75
• Replacement UV Lamp: UV1-FC-15CC-LP
INCLUDES
• Magnetic mounting base• 24 volt ballast
• 6 foot UV resistant power cord and all hardware
| Electrical | |
|---|---|
| Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.2 | Exterior Dimensions (D) (inches) | 24.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 3.000000 |
| Specification | |
|---|---|
| Produces Ions | No | Reduces VOCs | No |
| Warranty | |
|---|---|
| Country of Origin | United States |
