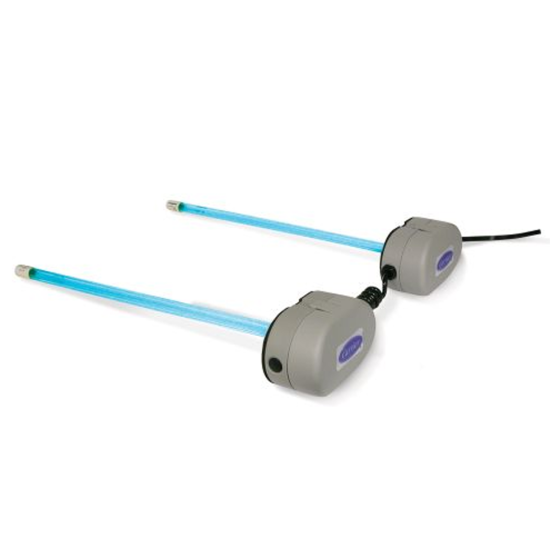

Carrier® Dual UV Germicidal Lamp 19", 208/230Vac, 53W
Item
UVLCC2LP3020
FEATURES
The indoor coil is part of what cools your home, but it and its drain pan can also be a favorite hangout of mold and bacteria. Growth of these organisms can affect efficiency and reduce airflow. They can even become airborne.
UV lamps from Carrier are designed to kill the mold and bacteria that can grow in the moist environment of your indoor coils to help keep your system efficient and clean air flowing.
• The UV Lights work to clean the coil and prevent the growth of fungus on and around the coil by destroying the DNA of the fungus to kill or deactivate it.• One hole, 2 mounting screws per lamp and a power source are all that are needed to install.
• The only maintenance required is replacing the lamp annually.
• Carrier UV Lamp Systems do not produce ozone.
SPECIFICATIONS
• Electrical (V- PH- Hz): 208/230- 1- 60• Maximum Amperage Draw: 0.6 Amps
• Average Power Consumption: 53 Watts
• Unit Power Cord (included) with ground pin plug: 6 foot cord
• Initial UVC Output at 1 Meter (in microwatts per square centimeter and 70 Deg F) and 450 FPM Airflow: 198
• Average Lamp Life: 1 Year
• Lamp Length: 19- in.
Electrical | |
---|---|
Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 7.7 | Exterior Dimensions (D) (inches) | 21.375000 | Exterior Dimensions (W) (inches) | 5.500000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 11.000000 |
Specification | |
---|---|
Produces Ions | No | Reduces VOCs | No |
