i-Vu® Zone II Programmable Zone Controller
Item
OPN-B3-P-02
OVERVIEW
Product-Integrated Controller

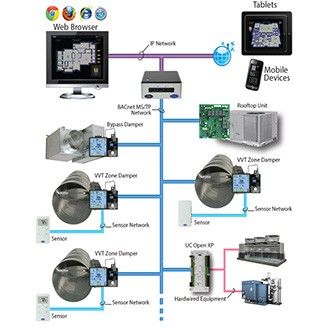

The Zone Controller II provides zone level control for a variety of pressure-independent VAV and pressure dependent VVT applications. This completely programmable advanced controller features a separable actuator for easy installation onto fan-powered or single-duct air terminals. It also features native BACnet communications and plug-and-play connectivity to the Carrier i-Vu Building Automation System.
FEATURES
FEATURES & BENEFITS
Application Features
- A library of sophisticated factory-engineered and tested control programs provide reliability and energy efficiency
- Programmable zone level control of terminal units, fan coils, lighting, exhaust fans and more
- Supports advanced control routines for zone level humidity control or zone level demand control ventilation (ASHRAE® 62)
- Supports Carrier communicating space sensors and touch screens which allow for local setpoint adjustment and local overrides
- Quick and easy test & balancing process
System Benefits
- Integrated Carrier airside linkage algorithm for plug-and-play integration with Carrier air sources
- Fully plug-and-play with the Carrier i-Vu Building Automation System
- Supports demand limiting for maximum energy savings
- Supports dual duct applications when used with Carrier’s VAV Zone II Secondary Terminal Controller
Hardware Features
- Separable brushless actuator for reliability and longevity
- Capable of system or stand-alone operation
- Native BACnet MS/TP or ARCNET communications
- Controls up to 8 points (3 binary outputs, 4 universal inputs and 1 analog output)
SPECIFICATIONS
| BACnet Support | Advanced Application Controller (B-AAC), as defined in BACnet 135-2012 Annex L Protocol rev. 9 |
| Communication Ports | BACnet Port: EIA-485 port for BACnet MS/TP communications (9600 bps, 19.2 kbps, 38.4 kbps, & 76.8) or ARCNET 156 kbps; Local Access Port: For system start-up and troubleshooting (115.2 kbps) Rnet Port: For connecting Carrier communicating room sensors and Carrier’s touchscreen user interface ARCnet Port: For connecting the actuator cable |
| Separable Actuator | Brushless DC motor, torque 45 inch-pounds (5Nm), runtime 205 seconds for 90 degree travel during control. |
| Integral Pressure Sensor | Precision low flow AWM series O-2 in H2O, sensitive down to +/-0.001 in. H2O. Barbed tapered airflow connections accept 3/16 in. (4.75 mm) ID tubing. Allows for readings across the 0-2 in H2O range, accurate to +/-5% of full flow at 2 in. H2O. |
| Inputs | 4 inputs: Configurable for thermistor or dry contact. Inputs 1 and 2 are also configurable for 0–5 Vdc 10 bit A/D resolution. Binary input pulse frequency 10 pulses per second. Minimum pulse width (on or off time) required for each pulse is 50 msec |
| Outputs | 1 analog output:0 to 10VDC (5mA maximum) with 8 bit D/A resolution using filtered PWM 3 binary outputs: Relay contacts rated at 1A max @ 24VAC/VDC, configured normally open. |
| Protection | Incoming power and network connections are protected by non-replaceable internal solid state polyswitches that reset themselves when the condition that causes a fault returns to normal. The power, network, input and output connections are also protected against voltage transient and surge events. |
| Battery | 10-year lithium CR2032 battery provides a minimum of 10,000 hours of trend data retention during power outages. |
| Status Indicators | LED status indicators for BACnet MS/TP communication, run status, error, power and all digital outputs |
| Controller Addressing | Rotary DIP switches set BACnet MS/TP or ARCnet address of controller. |
| Listed by | UL-916 (PAZX), cUL-916 (PAZX7), FCC Part 15-Subpart B-Class A, CE EN50082-1997, UL94-5VA plenum rated enclosure |
| Environmental Operating Range | Operating: 32° to 130°F (0° to 54°C) 10 to 90% RH, non-condensing Storage: -24° to 140°F (-30° to 60°C) 10 to 90% RH, non-condensing |
| Power Requirements | 24VAC +/- 10%, 50-60Hz, 14 VA power consumption, 26VDC (25V min, 30V max), single class 2 source only, 100 VA or less |
California residents please see Proposition 65
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.8 | Exterior Dimensions (D) (inches) | 2.500000 | Exterior Dimensions (W) (inches) | 8.930000 | Exterior Dimensions (H) (inches) | 5.870000 | Shipping Weight (lbs) | 1.800000 |
