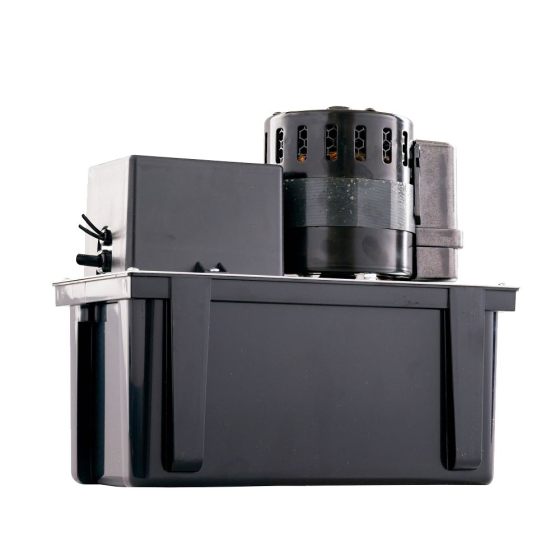

The VCL-45ULS Condensate Pump is a vertical type of pump unit equipped with a 1-gallon tank capacity for commercial condensate removal applications. With a flow rate of 450 gph, the VCL-45 Series pump is rated for high-efficiency gas furnace applications that produce acidic condensate. The included safety switch can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow.
FEATURES & BENEFITS
• Capacity: 450 gph @ 1' • Max. Liquid Temp.: 120 °F (49 °C) • Discharge: 3/8" barbed (9.5 mm) • Impeller: Glass-filled Polypropylene • Voltage: 115 Vac, 60 Hz • Operation: Automatic • HP: 1/5 hp • Frequency: 60 Hz • Amps - Full Load: 3.5 A • Full Load Watts: 185 W • Cord Length: 6 ft / 1.83 m • Flow Rate At 1ft: 7.5 GPM / 450 gph / 1703 Lph / 28.39 Lpm / 1.7 m³/h • Max PSIG: 19.5 PSI • Shut Off: 45 ft / 13.72 m • Safety Switch: YES • Pump Base Material: Plastic • Pump Body Material: Plastic • Check Valve: Yes • Product Width: 6 " / 15.24 cm • Product Height: 10.85 " / 27.56 cm • Product Length: 12.03 " / 30.56 cm • Product Weight: 12.3 lb. / 5.58 kg • Tubing Included: No
