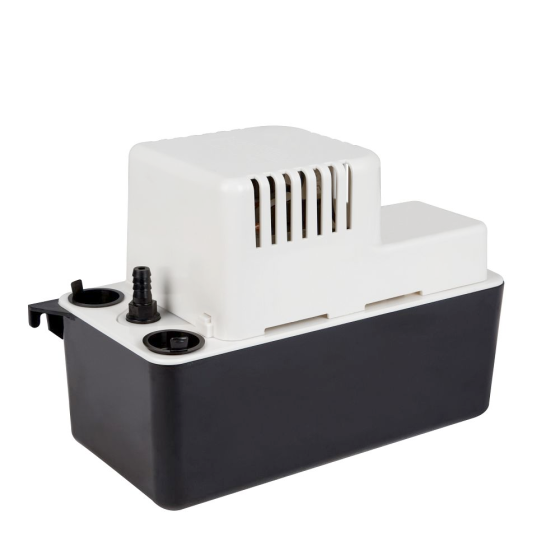

The VCMA-15 Series Condensate Pump provides a compact, vertical-type pump design with a safety switch and 15' lift. It features a 6 ft. power cord and a 3/8" O.D. barbed discharge adapter with built-in check valve. Three 1-1/8-" diameter inlet openings (two fitted with removal cap plugs) allow the condensate pump to be used with multiple types of equipment, including air conditioners and furnace systems.
FEATURES & BENEFITS
• Capacity: 65 gph @ 1' • Shut Off: 15' (4.6 m) • Impeller: Glass-filled Polypropylene • Electrical: 115 V, 60 Hz • Amps - Full Load: 1A • Full Load Watts: 60 W • Operation: Automatic • HP: 1/50 hp • Frequency: 60 Hz • Cord Length: 6 ft / 1.83 m • Continuous Duty: No • Max Flow Rate At 1ft: 1.08 GPM / 65 gph / 246 Lph / 4.1 Lpm / 0.25 m³/h • Max PSIG: 6.5 PSI • Maximum Suction Lift: 4.5 Meter • Max Solid Handling Size: 0 " / 0 cm • Safety Switch: YES • Tank Capacity: 0.5 gal / 1.89 L • Max Liquid Temperature: 140 °F • Pump Base Material: Plastic • Pump Body Material: Plastic • Impeller Type: Semi-open • Impeller Material: GF Polypropylene • Check Valve: Yes • Discharge Thread: Barb • Discharge Type: Barb • Discharge: 3/8" barbed (9.5 mm) • Suction Type: Screened • Product Width: 5 " / 12.7 cm • Product Height: 7.03 " / 17.86 cm • Product Length: 11 " / 27.94 cm • Pump Length: 11 " / 27.94 cm • Product Weight: 4.5 lb. / 2.04 kg • Product Weight w/ Pack: 5 lb. / 2.27 kg • Tubing Included: No
