Carrier® Vertical Low-Leak Economizer X Accessory for Small Rooftop Units

FEATURES

The EconoMi$er® X system utilizes the latest technology available for integrating the use of free cooling with mechanical cooling for packaged rooftop units. The code compliant W7220 control system optimizes energy consumption, zone comfort, and equipment cycling by operating the compressors when the outdoor-air temperature is too warm, integrating the compressor with outdoor air when free cooling is available, and locking out the compressor when outdoor-air temperature is too cold. Demand controlled ventilation is supported.

This EconoMi$er X system can be used with 1 or 2 speed indoor fan motor units. (All other speed settings listed are for future use.) The EconoMi$er X system utilizes gear-drive technology with a direct-mount spring return actuator that will close upon loss of power. The EconoMi$er X system comes standard with fault detection and diagnostics (FDD), an outdoor air temperature sensor, and mixed air temperature sensor (also called supply air temperature sensor). Outdoor enthalpy, indoor (return) dry bulb or enthalpy, and CO2 sensors are available for field installation.

Standard integrated barometric relief dampers provide natural building pressurization control. An optional power exhaust system is available for applications requiring even greater exhaust capabilities. The power exhaust set point is adjustable at the EconoMi$er X controller.

INCLUDES

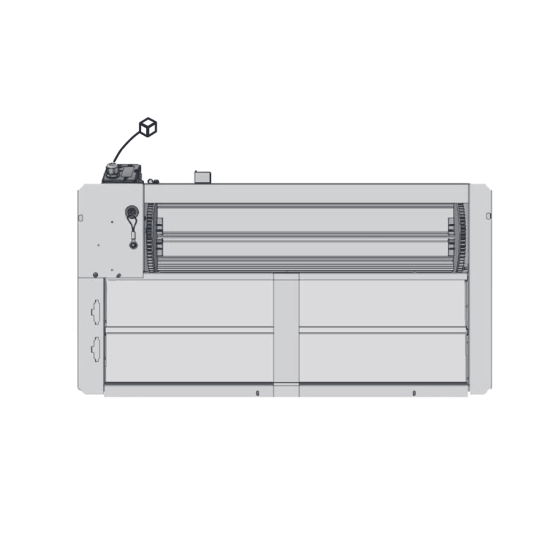

• 1 EconoMi$er Damper Assembly with Actuator and HH79AH001 (HW: C7250) Outside Air Sensor
• 1 HW63AW002 (HW: W7220) Controller with Attached Harness (Wiring Harness is shipped with original unit, not with kit.)
• 1 HH79ZZ007 Mixed Air Temp Sensor (Shipped in hardware kit for field installation.)
• 1 48TMHSRSE-A20 4-Wire Harness (Wiring Harness is shipped with original unit, not with kit.)
• 1 Hood Assembly with Top and 2 Sides
• 1 Hood Divider
• 1 Aluminum Filter
• 1 Hardware Bag (Shipped in hardware kit for field installation.)
