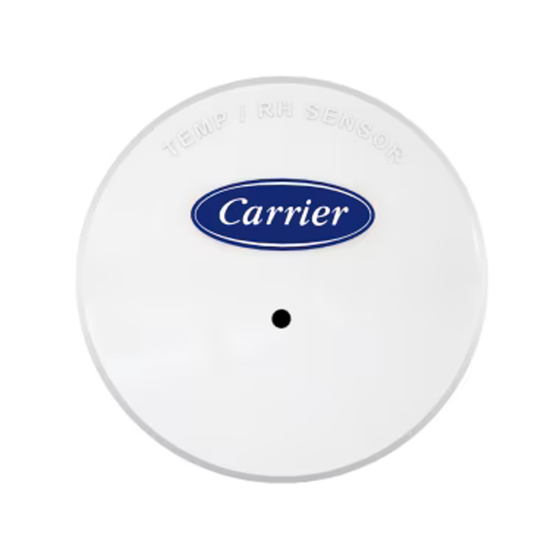

Wall Sensor

FEATURES

ClimaVision's suite of sensor offerings gives building owners the power of loT-connected devices for optimal efficiency and comfort in spaces where it matters most. Measure to manage with the Wall Sensor, a high-precision temperature and humidity sensor that pairs with the ClimaVision Smart Node to deliver data that influences equipment control. This device can be daisy chained with other sensors to provide an extensible sensor network.

The Wall Sensor adds a high precision temperature and humidity sensor that is pre-calibrated from the factory. The Wall Sensor is easily mounted on a wall by a single toggle bolt. A Wall Sensor paired with a ClimaVision Smart Node results in a clean aesthetic in your space while minimizing installation times.

The Wall Sensor provides accurate temperature and humidity values from your space to the Smart Node, which reports these values to the ClimaVision Central Control Unit (CCU).

• Accurate temperature readings (typical +/- 1°F or 0.2°C)
• Accurate humidity readings (typical +/- 2% R.H.)
• 3-wires to communicate with a master device such as the ClimaVision Smart Node
• Can be daisy-chained with other sensors to provide extensible sensor network
• Sensor bus for power and communication
• Sleek design, low impact aesthetics
• Factory pre-calibrated
• Easily mounted

APPLICATIONS
• VVT
• VAV
• Outside Air Optimization
• Single Stage Equipment
• Remote Sensing for HyperStat

SPECIFICATIONS

• Dimensions:
Circumference: 1.8” (46mm)
Surface depth: 0.2” (5.6mm)
Length: 2.4” (62mm)
Backplate height: 1.0” (26mm)

• Mounting: (1) toggle bolt, requires 1" hole in drywall
• Operating Temp: 0°F - 122°F (-18°C – 50°C)
• Termination: 3 pin Molex connector
• Accuracy: Humidity (typical +/- 2% RH), temperature (typical +/- 1°F or 0.2 °C)

ELECTRICAL
• Power: 6.5V DC provided by Smart Node via 3 pin connectors

COMMUNICATIONS
• Wired: 3-wire sensor bus for power and communication. Up to 4 sensors can be connected on the bus.
