Stainless Steel Braided Hose Kit with Manual Shutoff Valve 1" x 24"

FEATURES

Carrier's Aquazone hose kits combine high quality and reliable operation to facilitate installation and individual balancing for Aquazone water source heat pump (WSHP) units.

Kits are pre-assembled based on the physical water piping connections and design flow rate for individual units. All hose kits include braided stainless-steel, fire-retardant hoses. Thermoplastic tube, bonded to the stainless-steel braided hose, prevents kinking during installation.

Kits are shipped in pairs to streamline matching of kits for individual units. Stainless steel hose construction accommodates all boiler/tower and geothermal applications, providing maximum corrosion protection and structural integrity.

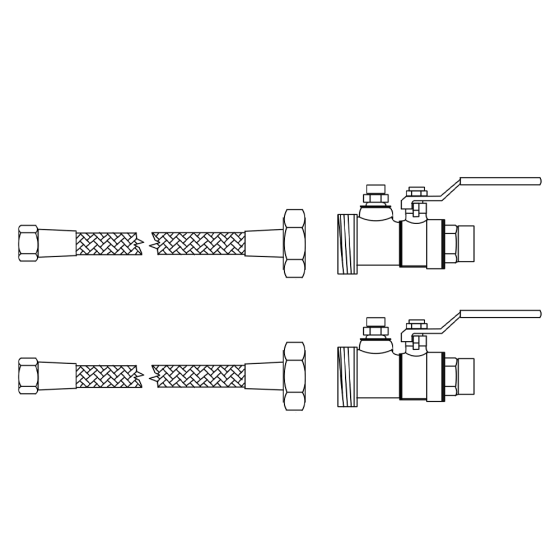

This hose kit provides a flexible connection between the WSHP and the water loop piping and manual shut off valves with pressure/temperature ports for servicing.

• Reinforced EPDM (ethylene propylene diene rubber) hose core, stainless steel hose braid, and brass OT58 fittings.
• Swivel connection with female ends provides a union between WSHP and the hose kit.
• Two NPSH (hose end) to MNPT (WSHP end) adapters provided and installed on each hose kit.
• Hot forged brass ASTM B238 ball valve with integral 1/4 in. FNPT P/T (pressure/temperature) ports and union end.

SPECIFICATIONS

• Connection Diameter (in.): ¾”

Kit Connection Type
• WSHP Side: Swivel Male NPT Threads (Includes Factory Installed NPSH to MNPT Male Adapter)
• Water Loop Side: Union End with Female NPT Threads

• Hose Length (in.): 24”
• Max Temperature (°F): 248
• Max Working Pressure (psi): 400
• Min. Bend Radius (in.): 4-3/8”

Cv (Constant Volume)
• Hose: 21.5
• Shut Off Valve: 42
