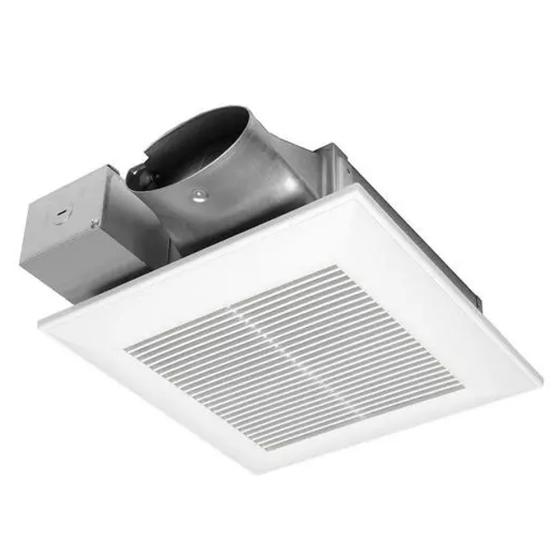

Panasonic WhisperValue® ENERGY STAR® Certified Ventilation Fan 4 in. Oval Duct, 30 to 100CFM, 0.9 Sones, 120Vac (Wall Mountable, Multi-Speed)

APPLICATIONS

The Panasonic WhisperValue® FV-0810VSS1 ENERGY STAR® Certified Ventilation Fan with multi-speed allows you to select the proper CFM settings to satisfy ASHRAE 62.2 code compliance for continuous ventilation requirements. As the lowest profile ENERGY STAR® rated ventilation fan available it is ideal for all types of residential and multi-family construction.

Features our revolutionary ECM motor with SmartFlow™ technology to remove unhealthy air from any space. Pick-A-Flow™ airflow selector switch enables you to customize airflow settings at your choice of 80 or 100 CFM.

FEATURES & BENEFITS

• Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
• Pick-A-Flow™ airflow selector – one fan, you choose the CFM (80 or 110)
• Built-in Multi-Speed Control for ASHRAE 62.2 compliance
• Multi-Speed control with 20 minute time delay for ASHRAE 62.2 compliance
• Elegant grille design compliments the aesthetics of any bathroom
• Air Volume Exhaust (CFM): 30, 31, 40, 41, 50, 52, 60, 64, 70, 72, 80, 81, 100,101 @ 0.1" SP and @ 0.25" SP
• CFM: 50-70. 80-110
• Other Approved Codes and Standards: Yes
• Current (Amps): 50 CFM= .08A, 70 CFM= 10.0 CFM= .13A, 100 CFM=.18A
• Ventilation Design Approach: Continuous Ventilation. Spot Ventilation
• Duct Diameter: 4" Oval
• Energy Efficiency (CFM/Watt): 50 CFM= 12.1 CFM/W, 70 CFM= 6.5 CFM/80 CFM= 10.0 CFM/W, 100 CFM = 8.2 CFM/W
• ENERGY STAR® Certified: Yes
• Grille Size (in sq.): 13"
• Installation: Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
• Motor Type (AC/DC): ECM
• Mounting Opening (in sq.): 10-1/2"
• Mounting Options: Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)
• Noise (Sones): 50 @ 0.1" SP = 0.3, 52 @ 0.25" SP = 0.5, 70 @ 0.1" SP = 0.3, 72 @ 0.25" SP = 0.06, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3
• Power Consumption (Watts): 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM= 12.4W
• Power Rating (Vac/Hz): 120/60
• Radiation Damper Available: Yes
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
• Warranty: 6 year DC Motor, 3 Year Parts

Motor/Blower
• Enclosed brushless ECM motor technology rated for continuous run.
• Fan ventilation rates shall be manually adjustable for 80 or 100 CFM.
• Power rating shall be 120 volts and 60 Hz.
• Fan shall be UL and cUL listed for tub/shower enclosure when GFCI protected and used in insulated ceiling (TYPE I.C.).
• PCB board equipped with thermal–cutoff fuse.
• Removable with permanently lubricated plug-in motor.

Housing
• 26 gauge galvanized steel body.
• Built-in 4" Oval duct collar. Also compatible with 4" round duct.
• Optional 24 gauge steel, fire code rated
• 4" oval to 3" round duct adaptor sold separately (Model # FV-VS43R).
• Built in backdraft damper.
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing.
• Unique L-shaped bracket simplifies installation and provides strong support.

Ceiling Radiation Damper
• WhisperValue DC is UL listed for use with the Panasonic Ceiling Radiation Damper (Model #: PC-RD05C5, sold separately).

Grille
• Attractive design using Poly Pro material.
• Attaches directly to housing with torsion springs.

Warranty
• ECM Motor: 6 Years from original purchase date.
• ALL Parts: 3 Years from original purchase date.
