APPLICATIONS

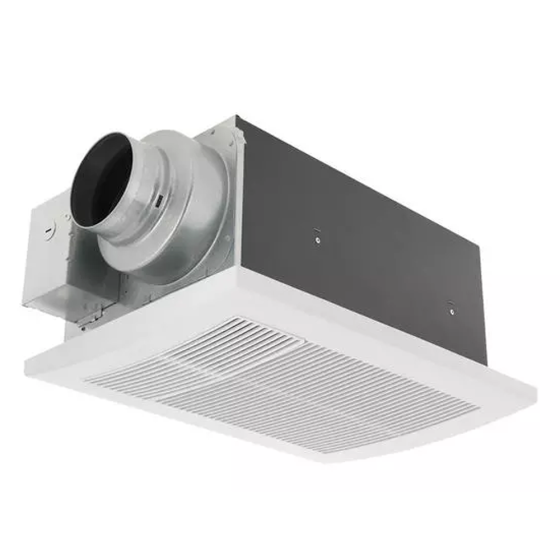

The Panasonic WhisperWarm® FV-0511VH1 ENERGY STAR® Certified Ventilation Fan/Heater provides easy code compliance for the professional, while the homeowner/occupant enjoys a warmer, more comfortable and HEALTHIER environment, with enhanced heating technology that quickly heats up any bathroom. Indoor comfortability is becoming more important in today’s environment and WhisperWarm DC is the solution!
FEATURES & BENEFITS
• Precision spot ventilation fan/heater incorporates a powerful ECM motor with Smartflow™ Technology for optimum CFM output
• Built-in 1600W Positive Temperature Coefficient (PTC) heater provides instant warm up for safe and reliable operation. Combined with a unique circulation grille with built-in diffuser, it provides even more advanced heating performance
• Pick-A-Flow ™ (50-80-110 CFM) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
• Light option includes a 10W dimmable LED chip panel with 1W LED night light, JA-8 compliant for CA Title 24 (night light must be wired separately)
• Flex-Z Fast™ bracket provides flexible, fast and easy installation, even from below the ceiling
• Advanced Features: Pick-A-Flow™ Airflow Selector, ECM motor with SmartFlow technology
• Air Volume Supply (CFM): @0.1= 110, 80, 50 @0.25= 112, 82, 51 @0.375= 110, 82, 53
• Noise (Sones): @0.1"SP (50,80,110 CFM) = 0.7, 0.3, 0.3 @0.25"SP(50,80,110 CFM) = 1.5, 1.0, 08
• Power Consumption (Watts): @ 0.1"SP (50,80,110 CFM) = 12, 7.7, 4.7 @ 0.25"SP = 19, 13.3, 8.6 @0.375"SP 26.0, 18.2, 12.3
• Energy Efficiency (CFM/Watt): @ 0.1"SP (50,80,110 CFM) = 9.2, 10.4, 10.6 @ 0.25"SP = 5.9, 6.2, 5.9 @0.375"SP 4, 4.5, 4.3
• Speed (RPM) 1342 1480: @ 0.1"SP (50,80,110 CFM) = 861, 736, 638 @ 0.25"SP = 1090, 1008, 930 @0.375"SP 1249, 1173, 1112
• Current (Amps): @ 0.1"SP (50,80,110 CFM) = 0.24, 0.16, 0.10 @ 0.25"SP = 0.37, 0.26, 0.18 @0.375"SP 0.49, 0.35, 0.25
• MAX. Current (Amps): 0.5
• Power Rating (Vac/Hz): 120/60
• Motor Type (AC/DC): ECM (DC)
• Type of Motor Bearing: Ball
• Thermal Fuse Protector: Yes
• Blower Wheel Type: Sirocco
• ENERGY STAR® Certified: No
• Duct Diameter: 4" or 6" (inches)
• Mounting Opening (in sq.): 10-1/4" x 16"
• Grille Size (in sq.): 13-1/4" x 18-1/4"
• Gross Weight (lbs): 16.3
• UL tub/Shower Enclosure: No
• Wall Installation: No
• California Title 24 Complaint (LED): Yes
• Mfg in ISO 9001 Certified Facility: Yes
Motor/Blower
• Enclosed brushless ECM motor technology rated for continuous run.
• Fan ventilation rates shall be manually adjustable for 50-80-110 CFM.
• Power rating shall be 120 volts and 60 Hz.
• Motor equipped with thermal–cutoff fuse.
• Removable with permanently lubricated plug-in motor.
• Minimum 20 Amp dedicated circuit required.
Housing
• 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing.
• Integrated dual 4” or 6” diameter duct adapter.
• Built-in back draft damper.
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the building envelope during blower door testing.
• Building Envelope during blower door testing.
• Suitable for installation in ceilings insulated up to R60.
• Articulating and expandable installation bracket up
Grille
• Attractive design using Poly Pro material.
• Attaches directly to housing with torsion springs.
• Circulation grille with built-in diffuser for higher output velocity and directional heat throw.
• Heater
• 1600W Positive Temperature Coefficient (PTC) heater for greater safety and reliability.
• Heater is self-limiting. As it approaches designed
• operating temperature, the electrical consumption automatically decreases, which prevents overheating.
Warranty
• 6 years ECM Motor, 5 years LED, 3 years all other parts. to 24".
