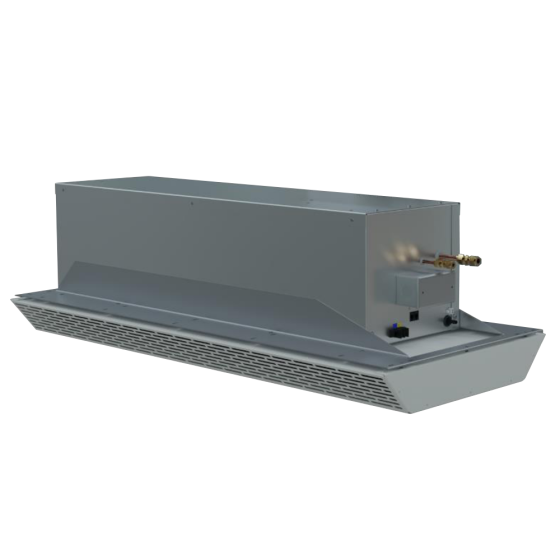

Wine Guardian® CS025 Ceiling Mounted Wine Cellar Cooling Evaporator, 2,755BTUH, 115Vac, Single Phase, 60Hz

FEATURES

The CS025 wine conditioning system for ceiling mounting is a quiet wine cooling system that is ideal wine storage spaces for small- to mid-size wine rooms with no space to install a traditional unit. This unit was designed specifically for ceiling-mounting and fits comfortably between standard joist construction— making it ideal for applications such as a wine storage display with living space around it or an all-glass wine room. The maximum capacity for the CS025 ceiling mount wine cooling system is 2,900 BTU/H.

• Designed specifically for recessed ceiling mounting
• Quiet operation
• Light-weight, corrosion-proof construction
• Paintable grille to match wine cellar design
• Advanced condensate removal system
• Easy to install & maintain
• Paired with a specifically-designed Wine Guardian condensing unit
• Low ambient protection
• Wine Guardian Wireless2Base controls

SPECIFICATIONS

Performance
• Net Cooling Capacity Total/Sensible
@30°F (minus 1°C) condenser inlet air: 2970/2400 BTUH
@40°F (4°C) condenser inlet air: 2900/2370 BTUH
@60°F (15°C) condenser inlet air: 2900/2360 BTUH
@70°F (21°C) condenser inlet air: 2900/2370 BTUH
@80°F (27°C) condenser inlet air: 2755/2285 BTUH
@100°F (32°C) condenser inlet air: 2400/2100 BTUH
@115°F (46°C) condenser inlet air: 2200/2000 BTUH

Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 5% RH

Fan-coil Section
• Fan Motor Size: 85 Rated Watts (x2 fans)
• Rated Air Flow (free blow): 140 CFM

Electrical Requirements
• Power: 115 Volts/1 phase/60Hz
• Current Draw - Cooling mode: 1.5 Amps

Cabinet
• Finish: Paintable anodized aluminum grille
• Weight (lbs.): 48
• Dimensions (inches):
Width: 18.25 in.
Depth: 43.25 in.
Height: 13.25 in.

• Condensate Drain: 0.5 inches

• Agency Approval(s): ETLc
