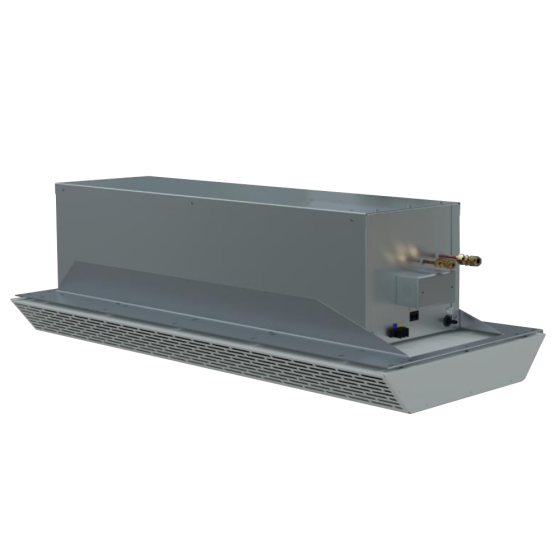

Wine Guardian® CS050 Ceiling Mounted Wine Cellar Cooling Evaporator, 4,050BTUH, 115Vac, Single Phase, 60Hz

FEATURES

Wine Guardian’s CS050 ceiling mounted wine cooling unit is ideal for small- to mid-size wine rooms which cannot accommodate a traditional unit. This split system is ideal for applications such as all-glass wine storage spaces and fits comfortably between standard joist construction. Maximum capacity is 4,300 BTU/H.

• Designed specifically for recessed ceiling mounting
• Quiet operation
• Light-weight, corrosion-proof construction
• Paintable grille to match wine cellar design
• Advanced condensate removal system
• Easy to install & maintain
• Paired with a specifically-designed Wine Guardian condensing unit
• Low ambient protection
• Wine Guardian Wireless2Base controls

SPECIFICATIONS

Performance
• Net Cooling Capacity Total/Sensible
@30°F (minus 1°C) condenser inlet air: 4430/3500 BTUH
@40°F (4°C) condenser inlet air: 4420/3500 BTUH
@60°F (15°C) condenser inlet air: 4400/3500 BTUH
@70°F (21°C) condenser inlet air: 4300/3400 BTUH
@80°F (27°C) condenser inlet air: 4050/3280 BTUH
@100°F (32°C) condenser inlet air: 3500/2930 BTUH
@115°F (46°C) condenser inlet air: 3080/2850 BTUH

Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 5% RH

Fan-coil Section
• Fan Motor Size: 85 Rated Watts (x2 fans)
• Rated Air Flow (free blow): 190 CFM

Electrical Requirements
• Power: 115 Volts/1 phase/60Hz
• Current Draw - Cooling mode: 1.5 Amps

Cabinet
• Finish: Paintable anodized aluminum grille
• Weight (lbs.): 48
• Dimensions (inches):
Width: 18.25 in.
Depth: 43.25 in.
Height: 13.25 in.

• Condensate Drain: 0.5 inches

• Agency Approval(s): ETLc
