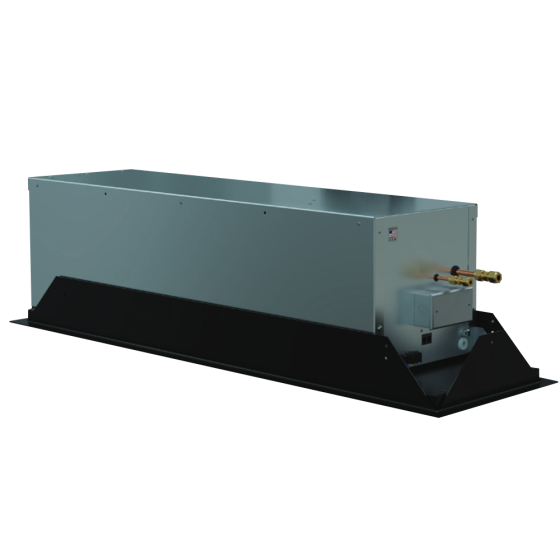

Wine Guardian® CS050 Ceiling Mounted Wall Cooling Evaporator, 4,050BTUH, 115Vac, Single Phase, 60Hz

FEATURES

Wine Guardian’s CS050 Wine Wall Cooling System provides superior cooling to maintain long-term storage conditions in wine wall applications. The system was designed to integrate flush with the ceiling of a wine wall so that no obtrusive equipment is visible. The CS050 has the capabilities to control conditions for both long-term storage (55°F/13°C to 58°F/14°C) and serving temperatures (down to 45°F/7°C).

SEAMLESS INTEGRATION
The slim design mounts completely flush with the wine wall’s ceiling – ensuring no obtrusive equipment takes up valuable wine storage space. The powder coated black grille can be easily painted to match the décor of the wine wall.

EASY ACCESS AND INSTALLATION
There are no tools required to remove the grille assembly, giving full access to the system’s internal components. Wine Guardian’s innovative hinge design acts as a second hand while installing it, so one person installations are simple.

EFFICIENT DESIGN
The system’s innovative low-profile grille contains integral supply and return sections for efficient delivery of conditioned air to and from the wine wall.

BUILT TO LAST
The Wine Wall Ceiling System’s evaporator features an all-aluminum chassis and grille assembly and contains coated coils to ensure product durability.

COMPREHENSIVE CONTROL
The system’s remote interface controller gives you full control over the temperature and humidity conditions within the space. An extra controller and up to 3 remote air sensors can be remotely connected for precise measurements when the controller is installed outside the wine space.

SPECIFICATIONS

Performance
• Net Cooling Capacity Total/Sensible
@30°F (minus 1°C) condenser inlet air: 4430/3500 BTUH
@40°F (4°C) condenser inlet air: 4420/3500 BTUH
@60°F (15°C) condenser inlet air: 4400/3500 BTUH
@70°F (21°C) condenser inlet air: 4300/3400 BTUH
@80°F (27°C) condenser inlet air: 4050/3280 BTUH
@100°F (32°C) condenser inlet air: 3500/2930 BTUH
@115°F (46°C) condenser inlet air: 3080/2850 BTUH

Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 5% RH

Fan-coil Section
• Fan Motor Size: 85 Rated Watts (x2 fans)
• Rated Air Flow (free blow): 190 CFM

Electrical Requirements
• Power: 115 Volts/1 phase/60Hz
• Current Draw - Cooling mode: 1.5 Amps
• Current Draw ‐ Heating mode: 10.2 Amps
• Minimum Circuit Size: 12.4 Amps

Cabinet
• Finish: Paintable anodized aluminum grille
• Weight (lbs.): 48
• Dimensions (inches):
Width: 18.25 in.
Depth: 43.25 in.
• Height: 13.25 in.

• Condensate Drain: 0.5 inches

• Agency Approval(s): ETLc
