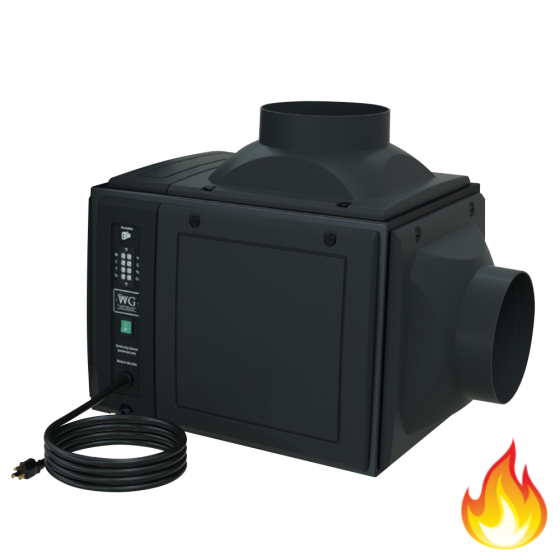

Wine Guardian® Pro Sentinel Series SP88 Ducted Wine Cellar Cooling Evaporator with Heater, 9,840BTUH, 208/230Vac, Single Phase, 60Hz

FEATURES

The SP88 Pro low temperature ductable split HVAC system for midsize to large specialty storage applications such as fur storage, wine rooms, and other niche environments is a perfectly-paired condensing unit and evaporator section that comes standard low ambient protection. Optional features include the Extreme Climate Protection Bundle and the electric heater. This wine cooling system has a max capacity of 10,760 BTU/H. The SP88 is compatible with modern smart thermostats and features enhanced refrigeration controls.

HEATER
Protects wine cellars from dangerously low temperatures. Adjustable activation from 2 - 6°F (-17 - -14°C) below your setpoint.

LOW AMBIENT PROTECTION
Protects the system from cold temperatures below 5°C (40°F).

BOLD
A sleek and modern look to compliment any wine cellar design.

EFFICIENT
The Pro Ducted system chassis features up to three times more insulation than previous versions. New stronger, double wall insulated duct collars insulate 42% more to help reduce temperature loss and condensation even in the most demanding environments.

VERSATILE
Our cooling systems offer a wide range of control, so you can match our units to your specific needs. Wine Guardian Pro systems use 24-volt electronics for easy integration with your existing smart home or commercial building management system.

STRONG
The Sentinel Series is made of the highest UL rated composite material, features an all aluminum chassis, and contains coated coils to ensure product durability. It is five times stronger than our previous model. The unit’s construction prevents dents and scratches from installation and shipping.

ACCESSIBLE
Composite multi-panel design with integral captive quarter-turn fasteners allows for ease of access and serviceability. Interchangeable duct collars and solid panels can be simply configured during installation.

SPECIFICATIONS

Performance (57°/55%RH)
• Net Cooling Capacity Total/Sensible
@10 Deg F condenser inlet air (BTUH): 10763/8610
@40 Deg F condenser inlet air (BTUH): 10865/8815
@60 Deg F condenser inlet air (BTUH): 10455/8405
@80 Deg F condenser inlet air (BTUH): 9840/7688
@100 Deg F condenser inlet air (BTUH): 9225/7073
@115 Deg F condenser inlet air (BTUH): 8713/6663

Controls
• Type: 24 Volt Control - (Thermostat by others)
• Fan Motor Size (Watts): 220
• Rated Air Flow (free blow) (CFM): 482
• Rated Air Flow @ pressure loss (CFM): 457 @ 0.20” w.c.

Electrical Requirements
• Power (volt/phase/hz): 208-230 Volts/1 phase/60Hz
• Current Draw - Cooling mode (Amps): 0.8
• Current Draw - Heating mode (Amps): 9.5
• Minimum Circuit Size (w/heat option) (Amps): 11.7

Heat
• Type: Electric
• Capacity (Watt): 2000

Cabinet
• Construction: Aluminum chassis & UL rated plastic panels
• Finish: Gray metal epoxy powder coat/textured PVC acrylic blend plastic
• Weight: 58
• Dimensions – inches:
Length: 23.8
Width: 25
Height: 19.7

• Condensate Drain (In.): 0.5
