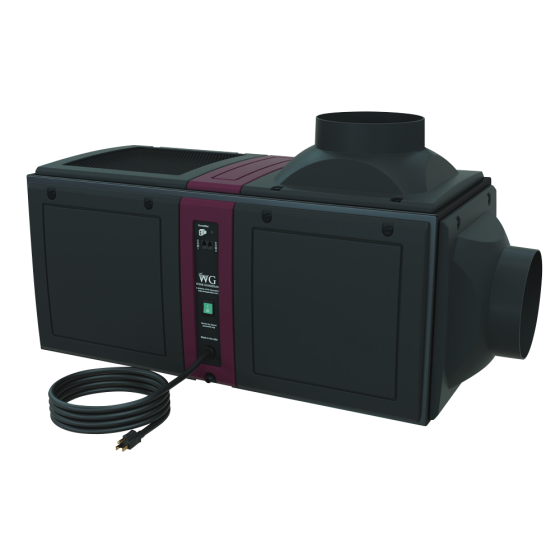

Wine Guardian® Sentinel Series D025 Ducted Wine Cellar Cooling Unit, 3,760BTUH, 115Vac, Single Phase, 60Hz

FEATURES

The D025 is a ducted wine cellar cooling unit for small residential and commercial wine cellars. The D025 unit is a self-contained, fully ductable cooling unit and as is a step up from the TTW018. If the cellar is sized for the TTW018 and contains a lot of glass, moving to the D025 is recommended. Contractor installation is recommended. The maximum capacity is 3,300 BTU/h (0.97 Kilowatts).

EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted system features a multi-panel design with easy access fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.

DURABLE DESIGN
The panels and duct collars are constructed of the highest rated UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.

EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.

SPECIFICATIONS

• Power Requirements (volt/phase/hz): 115/1/60

Performance
• Net Cooling Capacity (BTUH) Total/Sensible
@60 Deg F condenser inlet air (BTUH): 4520/3050
@70 Deg F condenser inlet air (BTUH): 4300/2915
@80 Deg F condenser inlet air (BTUH): 3760/2715
@90 Deg F condenser inlet air (BTUH): 3540/2580
@110 Deg F condenser inlet air (BTUH): 3260/2400
@120 Deg F condenser inlet air (BTUH): 3000/2260

Controls
• Type: Digital electronic
• Temperature Accuracy/RH% Accuracy: 1F / 10%

Evaporator Section
• Fan Motor Size (Watts): 75
• Rated Air Flow (free blow CFM): 245
• Rated Air Flow @ pressure loss (CFM): 200 @0.10" w.c.

Air-cooled Condenser Section
• Fan Motor Size (Watts): 75
• Rated Air Flow (free blow CFM): 245
• Rated Air Flow @ pressure loss (CFM): 200 @0.10" w.c.

Electrical Requirements
• Current Draw - Cooling mode (Amps): 7.1

Cabinet
• Construction: Aluminum chassis & UL Rated plastic panels
• Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
• Weight: 78
• Dimensions (inches):
Width: 33.45
Depth: 16.6
Height: 15.56

• Condensate Drain connection (ID): .50"
• Minimum Ductwork Size (Inches): 8
• Agency approval (ETLc): UL 1995 / CSA C22.2
