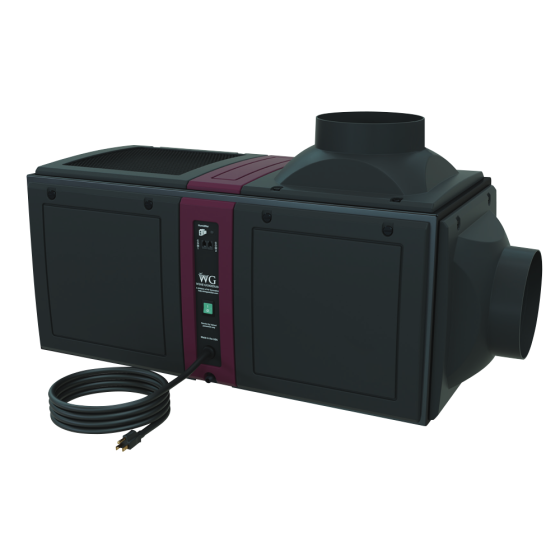

Wine Guardian® Sentinel Series D050 Ducted Wine Cellar Cooling Unit, 6,320BTUH, 115Vac, Single Phase, 60Hz

FEATURES

The D050 wine cellar cooling system is a self-contained, ducted wine cellar cooling system for medium-sized residential and commercial applications. The D050 wine cooler is also suggested for smaller cellars containing large amounts of glass. Contractor installation is recommended. The maximum capacity is 6,320 BTU/h (1.85 Kilowatts). The D050 system is available in a water-cooled configuration.

EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted system features a multi-panel design with easy access fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.

DURABLE DESIGN
The panels and duct collars are constructed of the highest rated UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.

EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.

SPECIFICATIONS

• Power Requirements (volt/phase/hz): 115/1/60
Performance
• Net Cooling Capacity (BTUH) Total/Sensible
@60 Deg F condenser inlet air (BTUH): 6920/4920
@70 Deg F condenser inlet air (BTUH): 6570/4740
@80 Deg F condenser inlet air (BTUH): 6320/4510
@90 Deg F condenser inlet air (BTUH): 5860/4230
@110 Deg F condenser inlet air (BTUH): 4865/3820
@120 Deg F condenser inlet air (BTUH): 4585/3590

Controls
• Type: Digital electronic
• Temperature Accuracy/RH% Accuracy: 1F / 10%

Evaporator Section
• Fan Motor Size (Watts): 100
• Rated Air Flow (free blow CFM): 390
• Rated Air Flow @ pressure loss (CFM): 320 @0.20" w.c.

Air-cooled Condenser Section
• Fan Motor Size (Watts): 100
• Rated Air Flow (free blow) (CFM): 390
• Rated Air Flow @ pressure loss (CFM): 320 @0.20" w.c.

Electrical Requirements
• Current Draw - Cooling mode (Amps): 11.3
• Current Draw - Heating mode (Amps): 9.6

Cabinet
• Construction: Aluminum chassis & UL Rated plastic panels
• Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
• Weight: 125
• Dimensions (inches):
Width: 41.5
Depth: 22.4
Height: 18.85

• Condensate Drain connection (ID): .50"
• Minimum Ductwork Size (Inches): 10
• Agency approval (ETLc): UL 1995 / CSA C22.2
