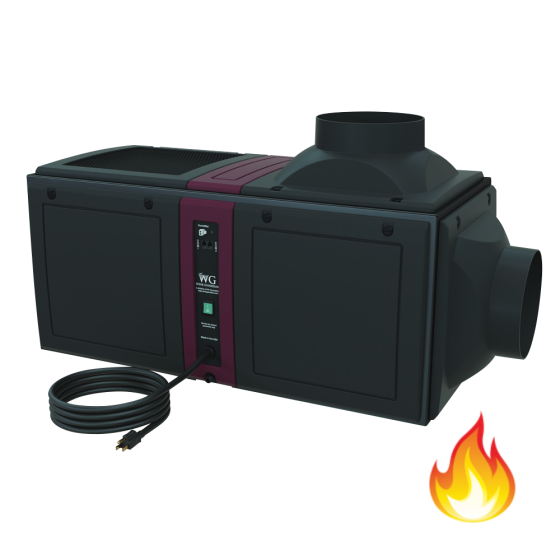

Wine Guardian® Sentinel Series D050 Ducted Wine Cellar Cooling Unit with Heater, 6,320BTUH, 115Vac, Single Phase, 60Hz (All Wine Temperatures Bundle)

FEATURES

The D050 wine cellar cooling system is a self-contained, ducted wine cellar cooling system for medium-sized residential and commercial applications. The D050 wine cooler is also suggested for smaller cellars containing large amounts of glass. Contractor installation is recommended. The maximum capacity is 6,320 BTU/h (1.85 Kilowatts). The D050 system is available in a water-cooled configuration.

ALL WINE TEMPERATURES BUNDLE
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.
This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.

EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted system features a multi-panel design with easy access fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.

DURABLE DESIGN
The panels and duct collars are constructed of the highest rated UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.

EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.

SPECIFICATIONS

• Power Requirements (volt/phase/hz): 115/1/60
Performance
• Net Cooling Capacity (BTUH) Total/Sensible
@60 Deg F condenser inlet air (BTUH): 6920/4920
@70 Deg F condenser inlet air (BTUH): 6570/4740
@80 Deg F condenser inlet air (BTUH): 6320/4510
@90 Deg F condenser inlet air (BTUH): 5860/4230
@110 Deg F condenser inlet air (BTUH): 4865/3820
@120 Deg F condenser inlet air (BTUH): 4585/3590

Controls
• Type: Digital electronic
• Temperature Accuracy/RH% Accuracy: 1F / 10%

Evaporator Section
• Fan Motor Size (Watts): 100
• Rated Air Flow (free blow CFM): 390
• Rated Air Flow @ pressure loss (CFM): 320 @0.20" w.c.

Air-cooled Condenser Section
• Fan Motor Size (Watts): 100
• Rated Air Flow (free blow) (CFM): 390
• Rated Air Flow @ pressure loss (CFM): 320 @0.20" w.c.

Heat
• Type: Electric
• Capacity (Watt/BTUH): 1000/3400

Electrical Requirements
• Current Draw - Cooling mode (Amps): 11.3
• Current Draw - Heating mode (Amps): 9.6
• Minimum Circuit amps (heat / no heat) (Amps): 11.8/13.7

Cabinet
• Construction: Aluminum chassis & UL Rated plastic panels
• Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
• Weight: 125
• Dimensions (inches):
Width: 41.5
Depth: 22.4
Height: 18.85

• Condensate Drain connection (ID): .50"
• Minimum Ductwork Size (Inches): 10
• Agency approval (ETLc): UL 1995 / CSA C22.2
