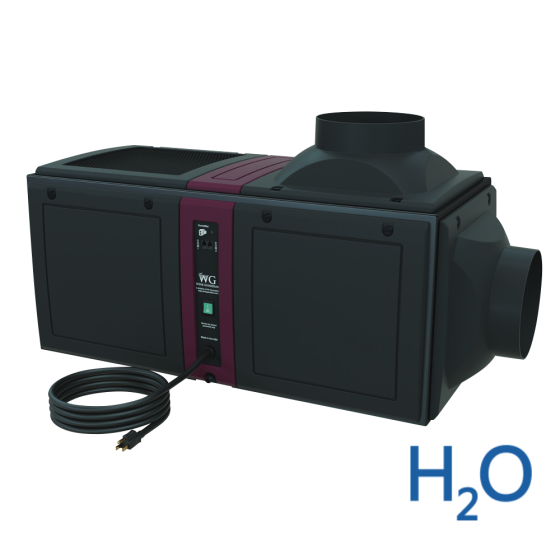

Wine Guardian® Sentinel Series D050WC Water-Cooled Ducted Wine Cellar Cooling Unit, 6,320BTUH, 115Vac, Single Phase, 60Hz

FEATURES

Wine Guardian D050WC wine cellar cooling unit can be factory configured to include an integral water-cooled condensing coil and water-regulating valve. This cooling unit is best in geothermal, cooling tower and lake water applications, and require a year-round source of water. Warm condenser air connections are not required, which makes the water-cooled option a perfect solution when warm condenser air venting isn’t possible.

The Water-cooled D050 unit is best for capacities up to 6,320 BTU/H (1.85 kW). Be sure to perform a complete heat load calculation prior to ordering your unit.

VERSATILE
The water-cooled systems offer flexible installation. They accept inlet water temperatures as cold as 45°F (7°C) and as warm as 85°F (29°C). The units also contain high-static pressure fans for extended length ductwork.

BOLD
A sleek and modern look to compliment any wine cellar design.

EFFICIENT
The ducted split system chassis features up to three times more insulation than previous versions. New stronger, double wall insulated duct collars insulate 42% more to help reduce temperature loss and condensation even in the most demanding environments.

STRONG
The Sentinel Series is made of the highest UL rated composite material, features an all aluminum chassis, and contains coated coils to ensure product durability. It is five times stronger than our previous model. The unit’s construction prevents dents and scratches from installation and shipping

ACCESSIBLE
Composite multi-panel design with integral captive quarter-turn fasteners allows for ease of access and serviceability. Interchangeable duct collars and solid panels can be simply configured during installation. The system also contains easy access water connection points.

SPECIFICATIONS

• Power Requirements (volt/phase/hz): 115/1/60

Performance
• Net Cooling Capacity Total/Sensible
@60 Deg F condenser inlet air (BTUH): 6920/4920
@70 Deg F condenser inlet air (BTUH): 6570/4740
@80 Deg F condenser inlet air (BTUH): 6320/4510
@90 Deg F condenser inlet air (BTUH): 5860/4230
@110 Deg F condenser inlet air (BTUH): 4865/3820
@120 Deg F condenser inlet air (BTUH): 4585/3590

Controls
• Type: Digital electronic
• Temperature Accuracy/RH% Accuracy: 1F / 10%

Evaporator Section
• Fan Motor Size (Watts): 100
• Rated Air Flow (free blow CFM): 390
• Rated Air Flow @ pressure loss (CFM): 320 @0.20" w.c.

Water-cooled Condenser Section
• Water usage at 20 Deg F rise (GPM): 0.60
• Pressure drop (PSI): 0.40
• Pipe connection size (in/out) O.D (in.): 0.50

Electrical Requirements
• Current Draw - Cooling mode (AMPS): 11.3

Cabinet
• Construction: Aluminum chassis & UL Rated plastic panels
• Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
• Weight (lbs.): 125
• Dimensions (inches):
Width: 41.5
Depth: 22.4
Height: 18.85

• Condensate Drain connection (ID) (in.): .50
• Minimum Ductwork Size (in.): 10
• Agency approval (ETLc): UL 1995 / CSA C22.2
