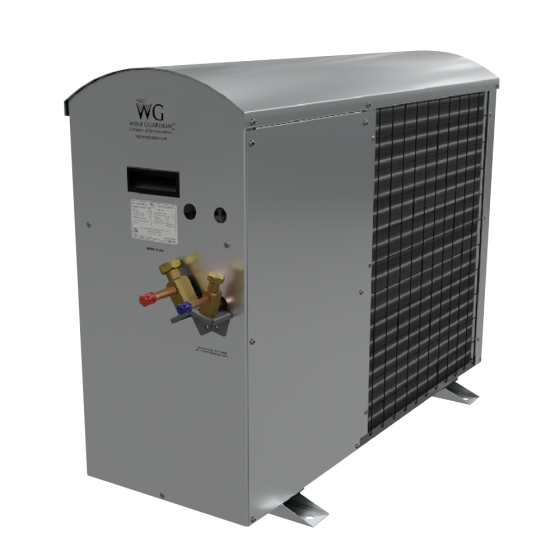

Wine Guardian® Sentinel Series DS025 Ducted Split Wine Cellar Cooling Condenser, 3,485BTUH, 208/230Vac, Single Phase, 60Hz (Extreme Climate Protection Bundle)

FEATURES

The DS025 split wine cellar air conditioner is ideal for small residential and commercial applications. The DS025 has an application range dependent upon use and room construction. Contractor installation is required. Max capacity of 3,400 BTU/H (1.055 Kilowatt).

LOW AMBIENT PROTECTION
Protects the system from cold temperatures below 5°C (40°F).

EXTREME CLIMATE PROTECTION BUNDLE
Unit protection in extreme climate conditions. It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.

EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted split system features a multi-panel design with captive quarter-turn fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.

DURABLE DESIGN
The panels and duct collars are constructed of the highest UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.

EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.

SPECIFICATIONS

Performance
• Net Cooling Capacity Total/Sensible
@10°F (minus 12°C) condenser inlet air: 4100/3178 BTUH
@40°F (4°C) condenser inlet air: 3793/3178 BTUH
@60°F (15°C) condenser inlet air: 3485/3075 BTUH
@70°F (21°C) condenser inlet air: 3690/3075 BTUH
@80°F (27°C) condenser inlet air: 3485/3178 BTUH
@100°F (32°C) condenser inlet air: 3178/2768 BTUH
@115°F (46°C) condenser inlet air: 2973/2563 BTUH
@122°F (50°C) condenser inlet air: 2460/2460 BTUH

Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 10% RH

Condensing Unit
• Nominal Compressor: 3.1 Amps
• Fan Motor Size: 75 Watts
• Rated Air Flow (free blow): 275 CFM
• Weight: 75 lbs

Enclosure
• Construction: Aluminum
• Finish: Anodized
• Width: 12 inches
• Length: 34 inches
• Height: 26 inches

Electrical Requirements
• Power: 208/230 Volts/1 Phase/60Hz
• MCA: 4.2 Amps
• MOP: 7.0 Amps
• Agency Approval(s): ETLc
