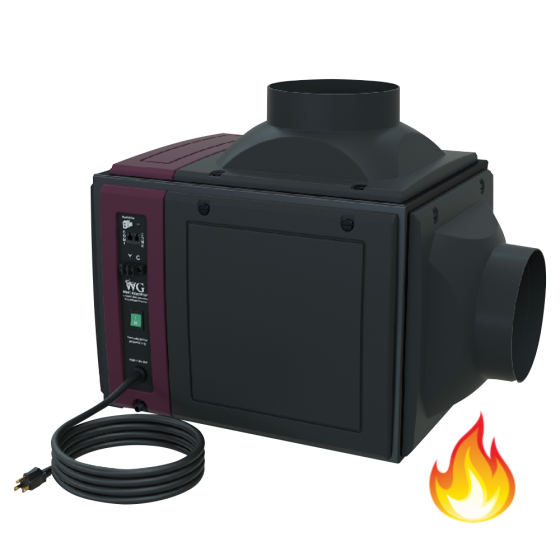

Wine Guardian® Sentinel Series DS025 Ducted Split Wine Cellar Cooling Evaporator with Heater, 3,485BTUH, 115Vac, Single Phase, 60Hz (All Wine Temperatures Bundle)

FEATURES

The DS025 split wine cellar ductable fan-coil is ideal for small residential and commercial applications. The DS025 has an application range dependent upon use and room construction. Contractor installation is required. Max capacity of 3,400 BTU/H (1.055 Kilowatt).

LOW AMBIENT PROTECTION
Protects the system from cold temperatures below 5°C (40°F).

ALL WINE TEMPERATURES BUNDLE
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.

This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.

EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted split system features a multi-panel design with captive quarter-turn fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.

DURABLE DESIGN
The panels and duct collars are constructed of the highest UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.

EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.

SPECIFICATIONS

Performance
• Net Cooling Capacity Total/Sensible
@10°F (minus 12°C) condenser inlet air: 4100/3178 BTUH
@40°F (4°C) condenser inlet air: 3793/3178 BTUH
@60°F (15°C) condenser inlet air: 3485/3075 BTUH
@70°F (21°C) condenser inlet air: 3690/3075 BTUH
@80°F (27°C) condenser inlet air: 3485/3178 BTUH
@100°F (32°C) condenser inlet air: 3178/2768 BTUH
@115°F (46°C) condenser inlet air: 2973/2563 BTUH
@122°F (50°C) condenser inlet air: 2460/2460 BTUH

Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 10% RH

Fan-coil Section
• Fan Motor Size: 90 Rated Watts
• Rated Air Flow (free blow): 236 CFM
• Rated Air Flow @ Max allow pressure loss: 226 @ 0.10"w.c. / CFM

Heat
• Type: Electric
• Capacity: 1000 Watts

Electrical Requirements
• Power: 115 Volts/1 phase/60Hz
• Current Draw - Cooling mode: 0.8 Amps
• Current Draw - Heating mode: 9.4 Amps
• Minimum Circuit Size (w/heat option): 11.6 Amps

Cabinet
• Fan coil construction: Aluminum chassis & UL Rated plastic panels
• Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
• Weight (lbs.): 35
• Dimensions (inches):
Width: 21.43
Depth: 16.60
Height: 15.56

• Condensate Drain: 0.5 inches

• Agency Approval(s): ETLc
