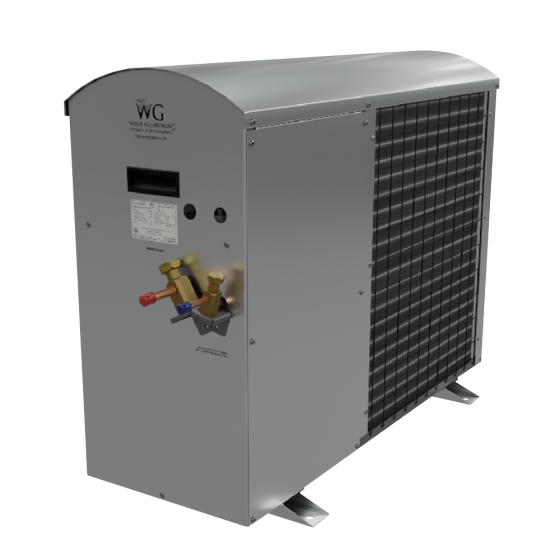

Wine Guardian® Sentinel Series DS050 Ducted Split Wine Cellar Cooling Condenser, 6,458BTUH, 208/230Vac, Single Phase, 60Hz
Item
99H0298-11
FEATURES
The DS050 split wine cellar air conditioning system is suited for medium-sized residential and commercial applications. Our wine cellar cooling calculator will help determine if this system is ideal for your wine room. Contractor installation is required. Max capacity of 6,300 BTU/H (1.55 Kilowatts).
EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted split system features a multi-panel design with captive quarter-turn fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.
DURABLE DESIGN
The panels and duct collars are constructed of the highest UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.
EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.
SPECIFICATIONS
Performance• Net Cooling Capacity Total/Sensible
@10°F (minus 12°C) condenser inlet air: 5535/4203 BTUH
@40°F (4°C) condenser inlet air: 6458/5023 BTUH
@60°F (15°C) condenser inlet air: 6765/5330 BTUH
@70°F (21°C) condenser inlet air: 6663/5125 BTUH
@80°F (27°C) condenser inlet air: 6458/5023 BTUH
@100°F (32°C) condenser inlet air: 5740/4510 BTUH
@115°F (46°C) condenser inlet air: 5125/3793 BTUH
@122°F (50°C) condenser inlet air: 4818/3485 BTUH
Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 10% RH
Condensing Unit
• Nominal Compressor: 4.8 Amps
• Fan Motor Size: 75 Watts
• Rated Air Flow (free blow): 375 CFM
• Weight: 76 lbs
Enclosure
• Construction: Aluminum
• Finish: Anodized
• Width: 12 inches
• Length: 34 inches
• Height: 26 inches
Electrical Requirements
• Power: 208/230 Volts/1 Phase/60Hz
• MCA: 6.4 Amps
• MOP: 10.0 Amps
• Agency Approval(s): ETLc
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 76 | Exterior Dimensions (D) (inches) | 34.000000 | Exterior Dimensions (W) (inches) | 12.300000 | Exterior Dimensions (H) (inches) | 26.070000 | Shipping Weight (lbs) | 76.000000 |
Specification | |
---|---|
Maximum Capacity (BTU/H) | 6,458 | Minimum Capacity (BTU/H) | 2,700 | Model | DS050 Condenser | Defrost Sensor | No | High Ambient Protection | No | Low Ambient Protection | Yes | Serving Temperature | No | Water Cooled | No |
