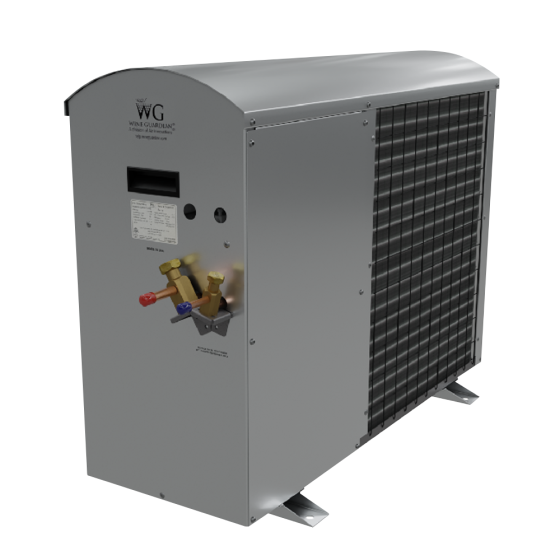

Wine Guardian® Sentinel Series DS088 Ducted Split Wine Cellar Cooling Condenser, 9,840BTUH, 208/230Vac, Single Phase, 60Hz (Extreme Climate Protection Bundle)

FEATURES

The DS088 ducted split wine cooling unit is ideal for medium to large residential and commercial wine rooms and wine cellars. Contractor installation is required. Max capacity of 9,600 BTU/H (2.81 Kilowatts).

EXTREME CLIMATE PROTECTION BUNDLE
Unit protection in extreme climate conditions. It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.

EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted split system features a multi-panel design with captive quarter-turn fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.

DURABLE DESIGN
The panels and duct collars are constructed of the highest UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.

EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.

SPECIFICATIONS

Performance
• Net Cooling Capacity Total/Sensible
@10°F (minus 12°C) condenser inlet air: 10763/8610 BTUH
@40°F (4°C) condenser inlet air: 10865/8815 BTUH
@60°F (15°C) condenser inlet air: 10455/8405 BTUH
@70°F (21°C) condenser inlet air: 10353/7893 BTUH
@80°F (27°C) condenser inlet air: 9840/7688 BTUH
@100°F (32°C) condenser inlet air: 9225/7073 BTUH
@115°F (46°C) condenser inlet air: 8713/6663 BTUH

Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 10% RH

Condensing Unit
• Nominal Compressor: 11.3 Amps
• Fan Motor Size: 150 Watts
• Rated Air Flow (free blow): 420 CFM
• Weight: 96 lbs

Enclosure
• Construction: Aluminum
• Finish: Anodized
• Width: 12 inches
• Length: 34 inches
• Height: 26 inches

Electrical Requirements
• Power: 208/230 Volts/1 Phase/60Hz
• MCA: 14.9 Amps
• MOP: 25 Amps

• Agency Approval(s): ETLc
