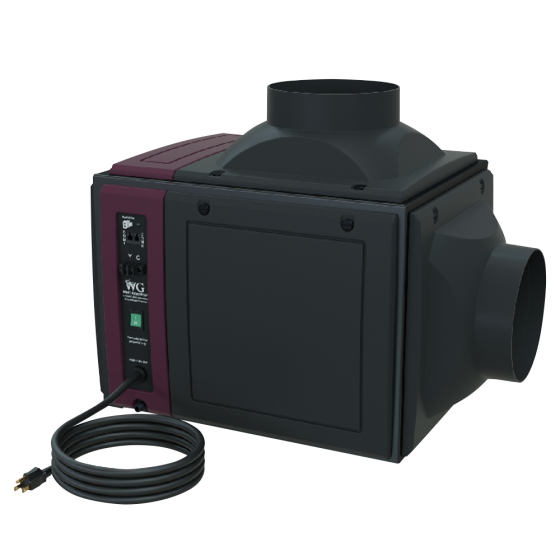

Wine Guardian® Sentinel Series DS088 Ducted Split Wine Cellar Cooling Evaporator, 9,840BTUH, 208/230Vac, Single Phase, 60Hz

FEATURES

The DS088 ducted split wine cooling fan-coil is ideal for medium to large residential and commercial wine rooms and wine cellars. Contractor installation is required. Max capacity of 9,600 BTU/H (2.81 Kilowatts).

EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted split system features a multi-panel design with captive quarter-turn fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.

DURABLE DESIGN
The panels and duct collars are constructed of the highest UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.

EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.

SPECIFICATIONS

Performance
• Net Cooling Capacity Total/Sensible
@10°F (minus 12°C) condenser inlet air: 10763/8610 BTUH
@40°F (4°C) condenser inlet air: 10865/8815 BTUH
@60°F (15°C) condenser inlet air: 10455/8405 BTUH
@70°F (21°C) condenser inlet air: 10353/7893 BTUH
@80°F (27°C) condenser inlet air: 9840/7688 BTUH
@100°F (32°C) condenser inlet air: 9225/7073 BTUH
@115°F (46°C) condenser inlet air: 8713/6663 BTUH

Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 10% RH

Fan-coil Section
• Fan Motor Size: 220 Rated Watts
• Rated Air Flow (free blow): 482 CFM
• Rated Air Flow @ Max allow pressure loss: 482 @ 0.20"w.c. / CFM

Electrical Requirements
• Power: 208-230Volts/1 phase/60Hz
• Current Draw - Cooling mode: 0.8 Amps

Cabinet
• Fan coil construction: Aluminum chassis & UL Rated plastic panels
• Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
• Weight (lbs.): 58
• Dimensions (inches):
Width: 23.81
Depth: 25.04
Height: 19.65
Condensate Drain: 0.5 inches

• Agency Approval(s): ETLc
