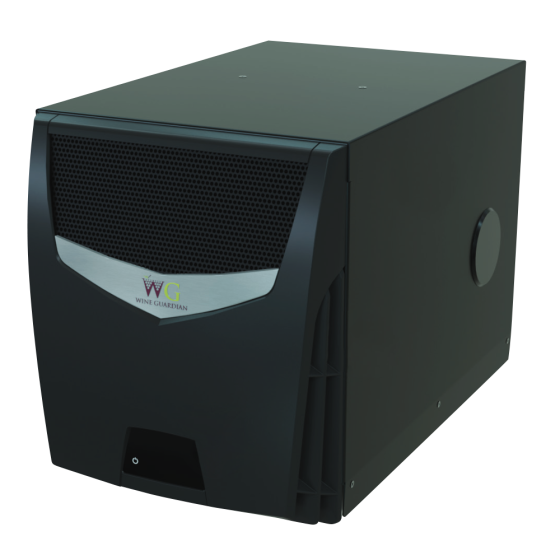

Wine Guardian® TTW018 Through the Wall Wine Cellar Cooling Unit, 1,950 BTUH, 115Vac, Single Phase, 60Hz

FEATURES

This through-the-wall wine air conditioning unit is ideal for smaller residential wine cellars. The TTW018 is easy to install and can be installed on your own without the support of a contractor. The max capacity of the TTW018 unit is 1,755 BTU/h (0.51 Kilowatts). Note: not rated for exterior use.

FULLY SELF-CONTAINED
The TTW is a fully self-contained system. No licensed contractor is needed to install the unit in a wine space.

DURABLE DESIGN
Commercial-grade, corrosion resistant component and an all-aluminum frame keep the TTW unit looking good as it ages alongside your wine collection.

TOUCHSCREEN CONTROL
Wine Guardian’s modern controller is conveniently located at the face of the unit for easy control and monitoring of the cellar’s temperature and humidity conditions.

SPECIFICATIONS

Performance
• Compressor Horsepower: 0.16
• Cooling Capacity- Total / Sensible*:
@ 75 Deg F Ambient (BTUH): 2100 / 1800
@ 85 Deg F Ambient (BTUH): 1950 / 1700
@ 95 Deg F Ambient (BTUH): 1540 / 1400
*Net cooling capacity at entering temperature and humidity of 58°F and 54% RH at rated airflow.

Controls
• Type: Digital electronic via local or remote interface
• Temperature Accuracy / RH% Accuracy: ± 1°F / +/-5%

Evaporator Section
• Fan Motor Size (Watts): 75
• Air Flow (CFM): 150

Air-cooled Condenser Section
• Fan Motor Size (Watts): 75
• Air Flow (CFM): 140
• Air Flow with 12' flex duct (CFM): 130

Electrical Requirements
• Power Requirements (V/P/H): 115/1/60
• Current Draw - Cooling mode (Amps): 4.15
• Minimum Circuit Size (Amps): 5

Typical Testing Data (Factory)
• Head Pressure (psig): 145
• Suction Pressure (psig): 38
• Evaporator Inlet Temperature (Deg F): 58/ 54%RH
• Evaporator Outlet Temperature (Deg F): 47
• Condenser Inlet Temperature (Deg F): 75
• Condenser Outlet Temperature (Deg F): 95

Cabinet
• Construction: .060" Aluminum
• Finish: Textured Black Morton #41-784
• Weight (pounds): 62
• Dimensions
Length (in.): 25
Width (in.): 14-1/4
Height (in.): 15-7/8

• Condensate Drain (inches): .25 I.D.
• Agency Approval(s): ETL - Conforms to UL Std. 484, Can/CSA C22.2 #117
