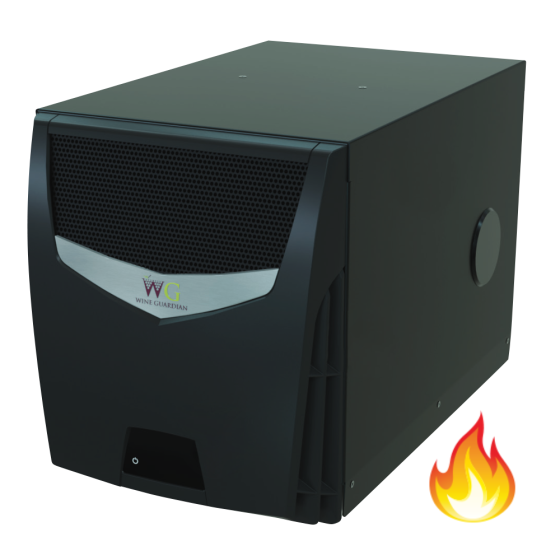

Wine Guardian® TTW018H Through the Wall Wine Cellar Cooling Unit with Heater, 1,950 BTUH, 115Vac, Single Phase, 60Hz

FEATURES

This through-the-wall wine air conditioning unit with heater is ideal for smaller residential wine cellars. The TTW018H is easy to install and can be installed on your own without the support of a contractor. The max capacity of the TTW018H unit is 1,755 BTU/h (0.51 Kilowatts). Note: not rated for exterior use.

HEATER OPTION
The Wine Guardian heater option acts to warm the air entering the wine cellar in order to maintain a constant set point.
The electric heat option includes the following:
• 500-watt integral heater
• Thermal overload protection device and controls
Protects wine cellars from dangerously low temperatures. Adjustable activation from 2 - 6°F (-17 - -14°C) below your setpoint.

FULLY SELF-CONTAINED
The TTW is a fully self-contained system. No licensed contractor is needed to install the unit in a wine space.

DURABLE DESIGN
Commercial-grade, corrosion resistant component and an all-aluminum frame keep the TTW unit looking good as it ages alongside your wine collection.

TOUCHSCREEN CONTROL
Wine Guardian’s modern controller is conveniently located at the face of the unit for easy control and monitoring of the cellar’s temperature and humidity conditions.

SPECIFICATIONS

Performance
• Compressor Horsepower: 0.16
• Cooling Capacity- Total / Sensible*:
@ 75 Deg F Ambient (BTUH): 2100 / 1800
@ 85 Deg F Ambient (BTUH): 1950 / 1700
@ 95 Deg F Ambient (BTUH): 1540 / 1400
*Net cooling capacity at entering temperature and humidity of 58°F and 54% RH at rated airflow.

Controls
• Type: Digital electronic via local or remote interface
• Temperature Accuracy / RH% Accuracy: ± 1°F / +/-5%

Evaporator Section
• Fan Motor Size (Watts): 75
• Air Flow (CFM): 150

Air-cooled Condenser Section
• Fan Motor Size (Watts): 75
• Air Flow (CFM): 140
• Air Flow with 12' flex duct (CFM): 130

Electrical Requirements
• Power Requirements (V/P/H): 115/1/60
• Current Draw - Cooling mode (Amps): 4.15
• Minimum Circuit Size (Amps): 5

Typical Testing Data (Factory)
• Head Pressure (psig): 145
• Suction Pressure (psig): 38
• Evaporator Inlet Temperature (Deg F): 58/ 54%RH
• Evaporator Outlet Temperature (Deg F): 47
• Condenser Inlet Temperature (Deg F): 75
• Condenser Outlet Temperature (Deg F): 95

Cabinet
• Construction: .060" Aluminum
• Finish: Textured Black Morton #41-784
• Weight (pounds): 62
• Dimensions
Length (in.): 25
Width (in.): 14-1/4
Height (in.): 15-7/8

• Condensate Drain (inches): .25 I.D.
• Agency Approval(s): ETL - Conforms to UL Std. 484, Can/CSA C22.2 #117
