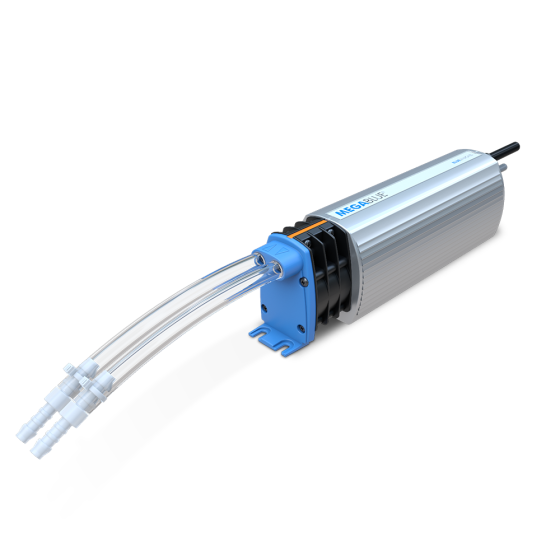

BLUEDIAMOND® MEGABLUE® Condensate Pump 13.2GPH, 48-170k BTU, 110-230Vac
APPLICATIONS
The MEGABLUE® has a slimline, lightweight design and is whisper quiet, it also has the performance to overcome installation challenges and uses the BlueDiamond ® revolutionary patented principle, making it inherently reliable. With the MEGABLUE ® there’s no cost penalty up front but big savings on installation and in service beyond.
Accredited with our own industry pioneering 3-year warranty. We have faith in our reliability and so should you.
BLUEDIAMOND ® Pumps are the only manufacturer of patented Rotary Diaphragm (RD) and GyRok™
technology.
FEATURES & BENEFITS
• 21 dba
• Maximum Flow: 13.2 Gallons per Hour
• Maximum Head: 66.5 Feet
• Maximum Lift: 23 Feet
• The MEGABLUE® can be mounted in any orientation up to 23FT away from the air conditioning unit.
• Electrical rating: 110-230Vac, 50/60Hz
• Inlet/Outlet size: Ø0.24”
Electrical | |
---|---|
Voltage | 110/208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Specification | |
---|---|
Gallons Per Hour | 13.2 |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2.2 | Exterior Dimensions (D) (inches) | 9.800000 | Exterior Dimensions (W) (inches) | 2.300000 | Exterior Dimensions (H) (inches) | 2.700000 | Shipping Weight (lbs) | 2.500000 |
Warranty | |
---|---|
Country of Origin | United States |
