XR3FTG-8-24 XR3 CSST Straight Fitting 1/2" NPT

FlashShield™ is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1 "Fuel Gas Piping Systems Using CSST" and listed with CSA®, ICC and IAPMO. The FlashShield system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing. The Jacket-LockTM and Metal locking features provide steel tubing protection and continuous conductivity

FEATURES & BENEFITS

• Approved for Concealed Use.
• Tool-Less Flare Fitting Design.
• Metal-to-Metal Seal.
• Multi-Point Seal.
• Self-Guiding Fitting Assembly.
• Jacket-LockTM Feature.
• Metal Locking Feature.
• Fully Reusable Fitting.
• Max. Approved Operating Pressure: 25 psi.
• Operating Temperature Range: -40°F to 160°F .
• Fitting Material: CA360.

INCLUDES

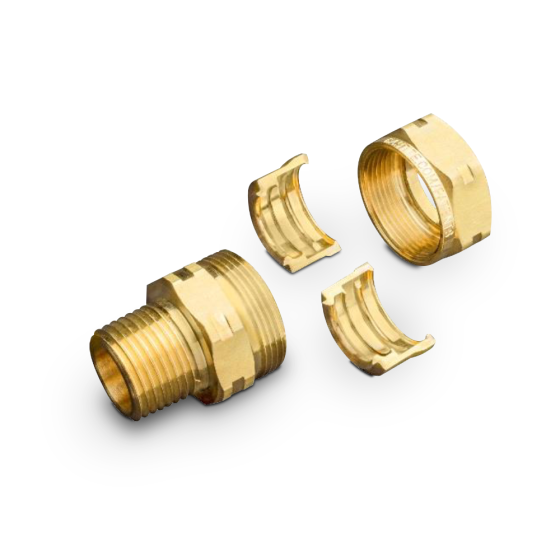

• Male NPT Adapter, Split Bushing, Nut.
