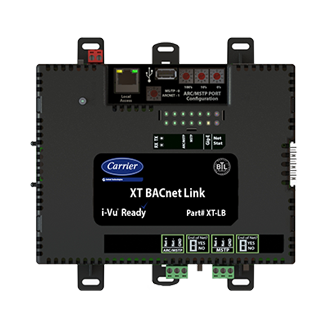

i-Vu® XT Building Automation System BACnet Link

Item
XT-LB
  • California Prop 65

OVERVIEW

Network & Integration Device

The i-Vu® XT BACnet link allows you to integrate other manufacturers’ equipment into the i-Vu® building automation system using the BACnet protocol, making it easy to tie in equipment such as VFDs, boilers, and lighting systems. Each i-Vu® XT BACnet link supports up to 1,500 third party BACnet points.

The i-Vu® XT BACnet link also routes BACnet messages between the i-Vu® building automation system backbone (BACnet/IP), and a subnetwork of i-Vu® controllers (BACnet MS/TP and/or BACnet ARCnet). It connects directly to the Ethernet LAN and provides the i-Vu® web server with access to the entire i-Vu system.

The i-Vu® XT BACnet link also extends an i-Vu® system, allowing individual BACnet MS/TP networks (with up to 60 controllers each), and BACnet ARCnet networks (with up to 99 controllers each), to be connected together via the i-Vu® building automation system backbone.



Safety Standards
California Prop 65 Yes
Hazardous Material No
Weights and Dimensions
Operating Weight (lbs) 1.1
Exterior Dimensions (D) (inches) 2.790000
Exterior Dimensions (W) (inches) 7.100000
Exterior Dimensions (H) (inches) 6.950000
Shipping Weight (lbs) 3.000000
