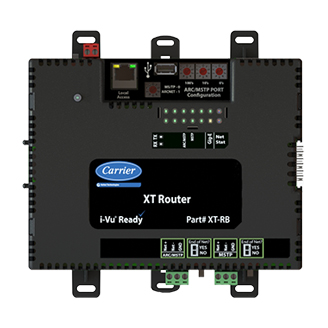

i-Vu® XT Building Automation System Router
Item
XT-RB
OVERVIEW
Network & Integration Device
The i-Vu® XT Router routes BACnet messages between the i-Vu building automation system backbone (BACnet/IP), and a subnetwork of i-Vu controllers (BACnet MS/TP and/ or BACnet ARCnet). It connects directly to the Ethernet LAN and provides the i-Vu web server with access to the entire i-Vu system.
The i-Vu XT Router also extends an i-Vu system, allowing individual BACnet MS/TP networks (with up to 60 controllers each), and BACnet ARCnet networks (with up to 99 controllers each), to be connected together via the i-Vu building automation system backbone.
Safety Standards | |
---|---|
California Prop 65 | Yes | Hazardous Material | No |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1.1 | Exterior Dimensions (D) (inches) | 2.790000 | Exterior Dimensions (W) (inches) | 7.100000 | Exterior Dimensions (H) (inches) | 6.950000 | Shipping Weight (lbs) | 3.000000 |
