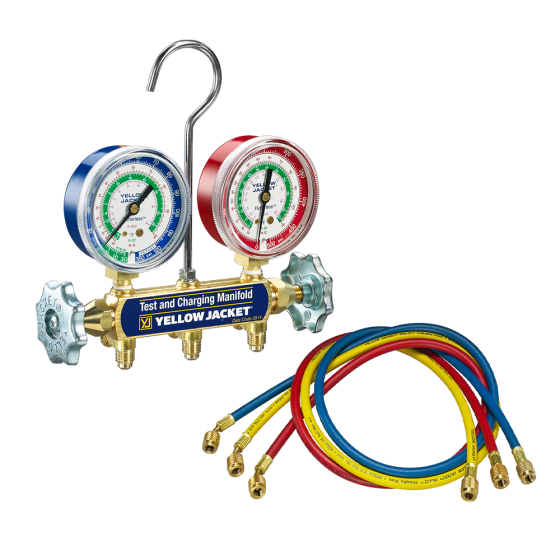

Yellow Jacket® Series 41 2-Valve Brass Manifold Kit with 2-1/2" Gauges (°F) Charging Hoses 1/4" x 1/4" x 36" (R12, R22, R502)

Item
41213
  • California Prop 65

FEATURES

Full porting maximizes capacity. Metal valve handles are full size for easy operation. Hose anchors are forged into back of body at 45°.

• Flutterless™ technology means surge protector and silicone dampened movement helps minimize needle pulsation for easier, more accurate readings.
• Sliding double “O” ring pistons reduces wear
• Easy-to-read 2-1/2" (63.5 mm) steel case gauges with 3-2-3% accuracy (Class B)
• Limited lifetime warranty on manifold bar and valves – not gauges. See warranty information for details
• For use with R12, R22, and R502
• Includes a set of 36" charging hoses
• Made in the USA
Specification
A2L Compatible No
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 2.48
Exterior Dimensions (D) (inches) 8.500000
Exterior Dimensions (W) (inches) 2.480000
Exterior Dimensions (H) (inches) 2.500000
Shipping Weight (lbs) 2.480000
