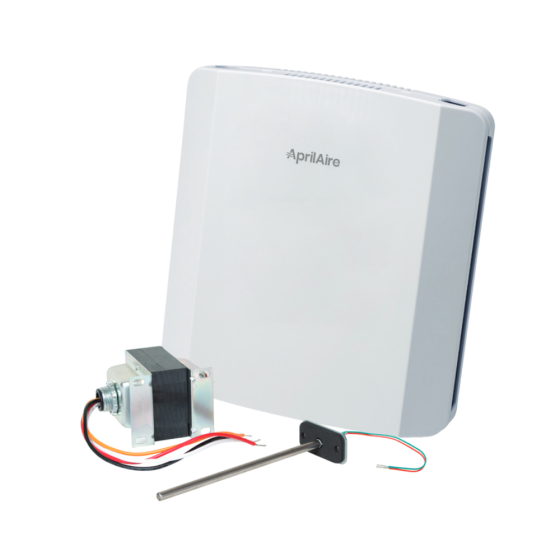

AprilAire® Zoned Comfort Control™ 3-Zone Panel Kit (1H/1C Conventional)

FEATURES

The Model 6203 Zone Comfort Control Panel increases comfort and reduces energy costs by maintaining consistent temperatures throughout the house.

• Conventional 1 heating and 1 cooling stage
• Equipment protection
• Vacation mode – Zone 1 thermostat controls all zones

SPECIFICATIONS

• Overall Dimensions: 8 63⁄100" W x 9 33⁄50" H x 1 43⁄50" D
• Damper output per zone (fused): 18VA at 158°F, 30VA at 90°F
• Zone panel and thermostats (fused): 18VA at 158°F, 30VA at 90°F
• Zone panel consumption: 4VA max
• Note: Use 18 or 20 AWG solid (non-stranded) wire
• Temperature (operating): 32°F – 158°F
• Temperature (shipping): -40°F – 180°F
• Humidity: 5% – 90%, non-condensing
• Voltage: 18-30VAC 50/60 Hz
