ZoneFirst Mini-MasterZone™ 2, 3 or 4 Zone Control Panel (3H/2C Conventional, 4H/2C Heat Pump & Dual Fuel*)

FEATURES

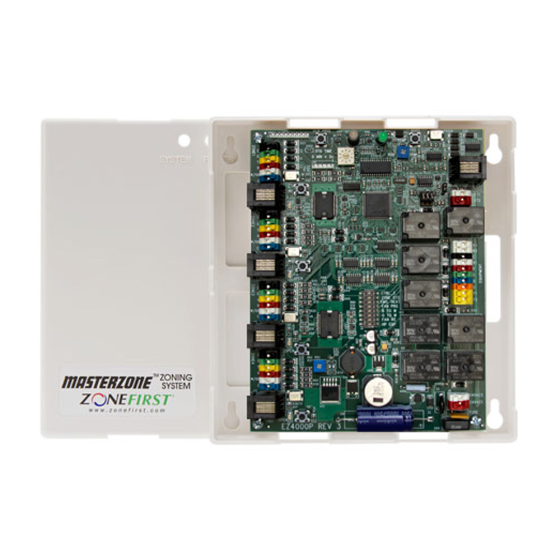

The MasterZone™ Zoning System-4 is a four (4) zone control panel that controls up to four zones of heating and cooling. The MZP4 panel is the central control panel that all zone dampers, zone thermostats, HVAC Equipment, power transformer, Leaving Air Sensor and ZoneAdder™ panels are wired.

The MZP4 can control various types of HVAC Equipment all from the same panel. The MZP4 features allow the use of single stage thermostats to control up to three stage heating and two stage cooling and simple heat pump thermostats to control heat pumps. The MZP4 has various features that make installation and checkout very simple for all of the board’s functionality.

The MZP4’s basic function is zone control. On a call for heating or cooling, the panel will accept the first call from any zone. Upon accepting this call the MZP4 will open the damper(s) to the zone(s) calling, close the damper(s) to those zones not calling, activate the needed HVAC controls for heating or cooling, whichever is being called and not accept any calls for the opposite mode.

• Universal 2, 3 or 4 Zone Panel for Heat Pumps, Dual Fuel and Conventional 4 heat/ 2 cool.
• * Dual fuel heat pumps require a separate dual fuel control.
• Built in DIP switches that set desired functions for type of HVAC equipment outputs and zone thermostats used.
• ZPS sensor to provide capacity control of the equipment.
• Compatible with any 4/5 wire thermostats.
• Built in LEDs indicate system status and indicators to show each zone’s call.
• Color-coded, push-in terminal blocks makes wiring simple and fast.
• Used with RDP, RTP, RRP, ZDSP, ZDBP & OZD Dampers
• Available with By-Pass Eliminator (MZP4B) or with full Kit (MZP4BK – includes By-Pass Eliminator, ZPS and T24)
