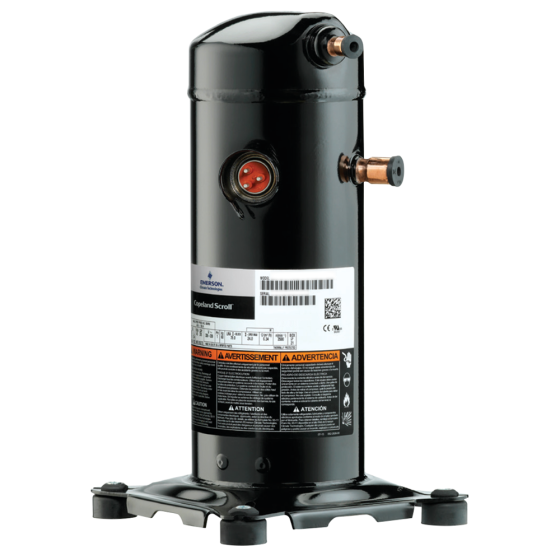

Copeland Hermetic Scroll Compressor R410A, 20,000BTU, 208/230Vac, Single Phase

Item

ZP20K5E-PFV-830

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Compressor Type: Scroll
• BTU Rating: 20,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 35/370µF
• MCC: 21
• LRA: 58.3
• RLA: 15
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 10.3"
• Discharge Line Size: 1/2"
• Discharge Line Height: 14.15"

Specifications

Electrical
Hertz	60
Phase	1
RLA	15
Voltage	208/230

Specification
BTU Rating	16 to 20kBTU
Oil	POE (Polyester)
Suction Line Height	10.3"
Discharge Line Height	14.15"
Discharge Line Size	1/2"
BTU Output	20000
Compressor Type	Scroll
Refrigerant	R-410A

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	47.6
Exterior Dimensions (D) (inches)	8.700000
Exterior Dimensions (W) (inches)	6.900000
Exterior Dimensions (H) (inches)	15.300000
Shipping Weight (lbs)	78.000000

Warranty
Country of Origin	United States

Resources

ZP20K5E-PFV-830.pdf
