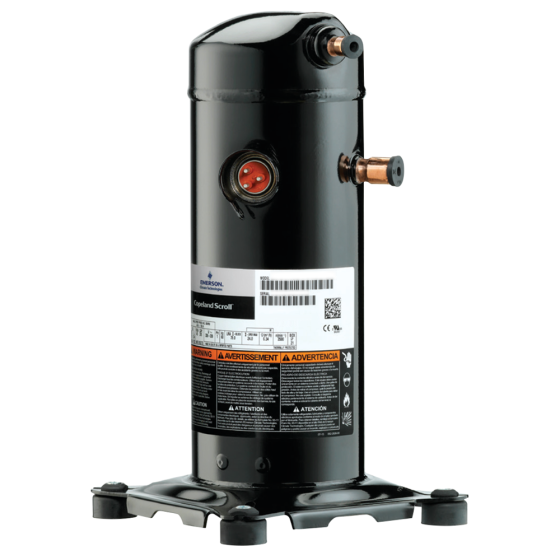

Copeland Hermetic Scroll Compressor R410A, 20,000BTU, 208/230Vac, Single Phase
Item
ZP20K6E-PFV-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 20,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 35/370µF
• MCC: 17
• LRA: 62.9
• RLA: 12.1
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 10.51"
• Discharge Line Size: 1/2"
• Discharge Line Height: 13.93"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 16 to 20kBTU | Oil | POE (Polyester) | Discharge Line Size | 1/2" | BTU Output | 20000 | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 48 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 13.000000 | Exterior Dimensions (H) (inches) | 20.000000 | Shipping Weight (lbs) | 78.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
