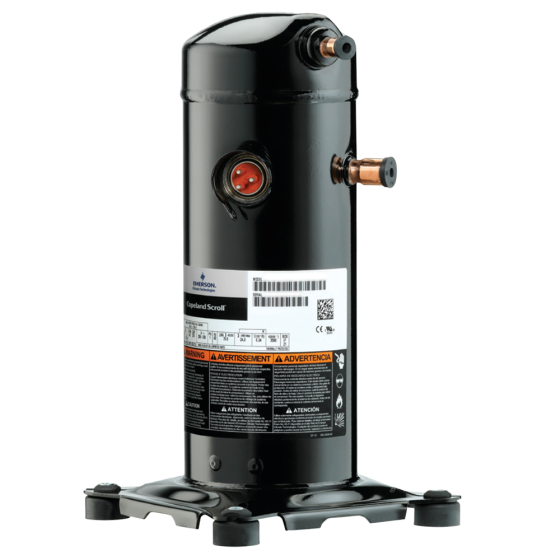

Copeland Hermetic Scroll Compressor R410A, 51,000BTU, 208/230Vac, Single Phase
Item
ZP51K5E-PFV-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 51,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 70/370µF
• MCC: 41.2
• LRA: 134
• RLA: 29.4
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.5"
• Discharge Line Size: 1/2"
• Discharge Line Height: 15.34"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 29.4 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 51 to 55kBTU | Suction Line Height | 11.50" | Discharge Line Height | 15.34" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 51000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 75.5 | Exterior Dimensions (D) (inches) | 7.900000 | Exterior Dimensions (W) (inches) | 7.600000 | Exterior Dimensions (H) (inches) | 16.400000 | Shipping Weight (lbs) | 106.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
