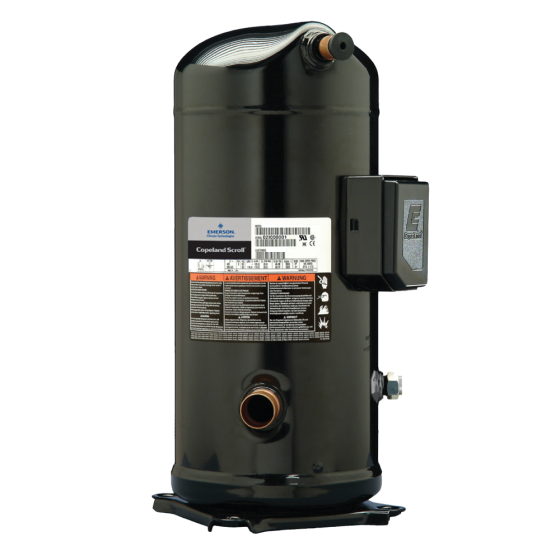

Copeland Hermetic Scroll Compressor R410A, 90,000BTU, 208/230Vac, Three Phase
Item
ZP90KCE-TF5-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 90,000
• Refrigerant: R410A
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 46
• LRA: 195
• RLA: 32.9
• Hertz: 60
• Suction Line Size: 1-1/8"
• Suction Line Height: 3.69"
• Discharge Line Size: 7/8"
• Discharge Line Height: 17.49"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 32.9 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 81 to 90kBTU | Suction Line Height | 3.69" | Discharge Line Height | 17.49" | Discharge Line Size | 7/8" | Oil | POE (Polyester) | BTU Output | 90000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 151 | Exterior Dimensions (D) (inches) | 18.000000 | Exterior Dimensions (W) (inches) | 19.000000 | Exterior Dimensions (H) (inches) | 18.800000 | Shipping Weight (lbs) | 181.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
