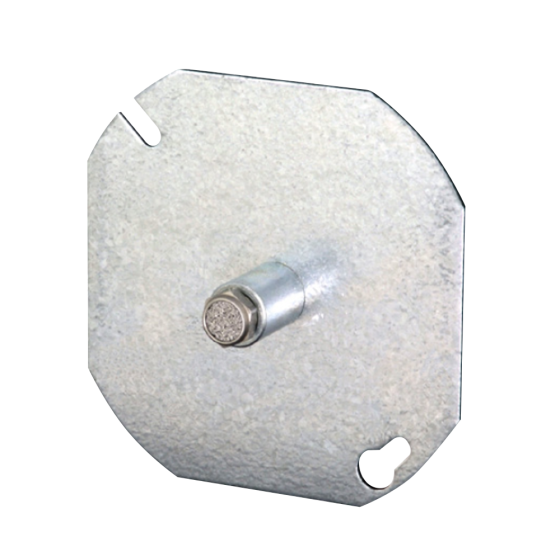

Ceiling Mount Square Cover with Static Zone Pressure Sensor Pickup - Test
Item
ZPS-ACC05
FEATURES
The Ceiling Mount Cover is designed to fit a standard 3/4” thick suspended ceiling tile. The brass fitting on the back of all Pickup Ports accommodates standard 1/8” to 5/32” I.D. tubing.
• Economical & Easy to Install• Ceiling Mount with or without J-Box
• 80 Micron Filter
• Accommodates 1/8” I.D. to 5/32” I.D. Tubing
SPECIFICATIONS
Environmental Operation Range• Temp. - 32 to 122 °F (0 to 50 °C)
• Humidity 0% to 95% RH, non-condensing
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
