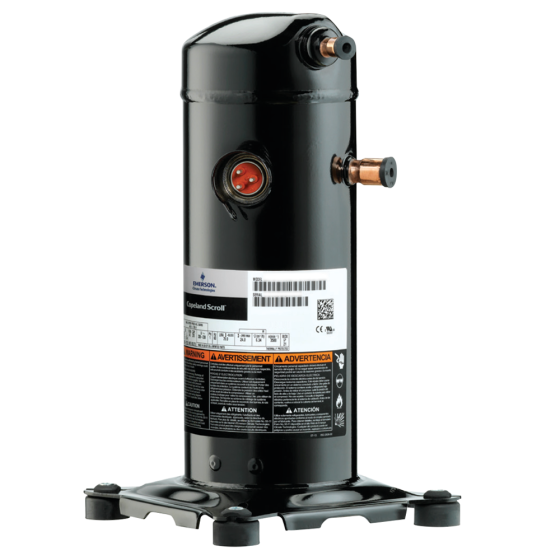

Copeland Hermetic Scroll Compressor R410A, 26,000BTU, 208/230Vac, Single Phase (Two Stage)
Item
ZPS26K5E-PFV-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 26,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 40/370µF
• MCC: 20.4
• LRA: 73
• RLA: 14.6
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 10.25"
• Discharge Line Size: 1/2"
• Discharge Line Height: 14.15"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 14.6 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 26 to 30kBTU | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 26000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 53 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 13.000000 | Exterior Dimensions (H) (inches) | 20.000000 | Shipping Weight (lbs) | 83.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
