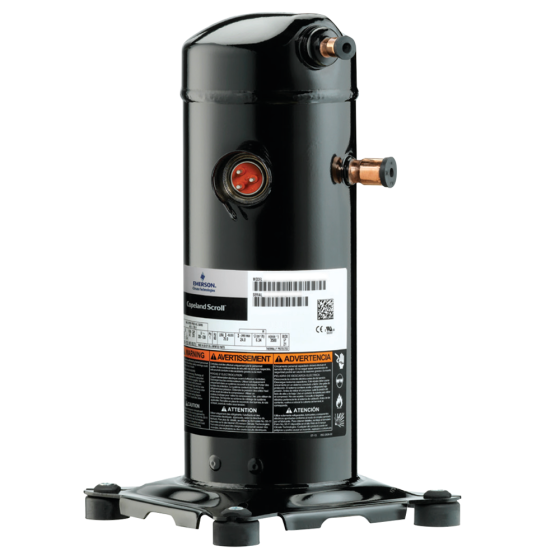

Copeland Hermetic Scroll Compressor R410A, 40,000BTU, 208/230Vac, Single Phase (Two Stage)
Item
ZPS40K5E-PFV-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 40,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 30/440µF
• MCC: 33
• LRA: 104
• RLA: 23.6
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.50"
• Discharge Line Size: 1/2"
• Discharge Line Height: 15.34"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 23.6 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 36 to 40kBTU | Oil | POE (Polyester) | Discharge Line Size | 1/2" | BTU Output | 40000 | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 78 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 13.000000 | Exterior Dimensions (H) (inches) | 20.000000 | Shipping Weight (lbs) | 108.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
