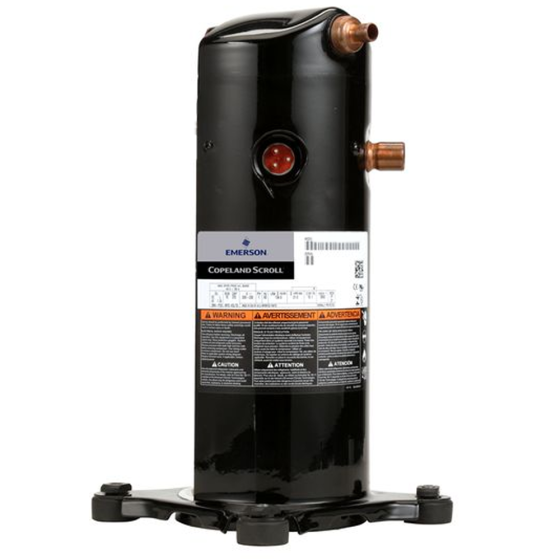

Copeland Hermetic Scroll Compressor R22, 42,000BTU, 460Vac, Three Phase
Item
ZR42K5E-TFD-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 42,000
• Refrigerant: R22
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 9
• LRA: 48
• RLA: 6.4
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.05"
• Discharge Line Size: 1/2"
• Discharge Line Height: 15.30"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 6.4 | Voltage | 460 |
| Specification | |
|---|---|
| BTU Rating | 41 to 45kBTU | Oil | POE (Polyester) | Suction Line Height | 11.1" | Discharge Line Height | 15.4" | Discharge Line Size | 1/2" | BTU Output | 42000 | Compressor Type | Scroll | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 65 | Exterior Dimensions (D) (inches) | 13.000000 | Exterior Dimensions (W) (inches) | 15.000000 | Exterior Dimensions (H) (inches) | 16.300000 | Shipping Weight (lbs) | 95.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
