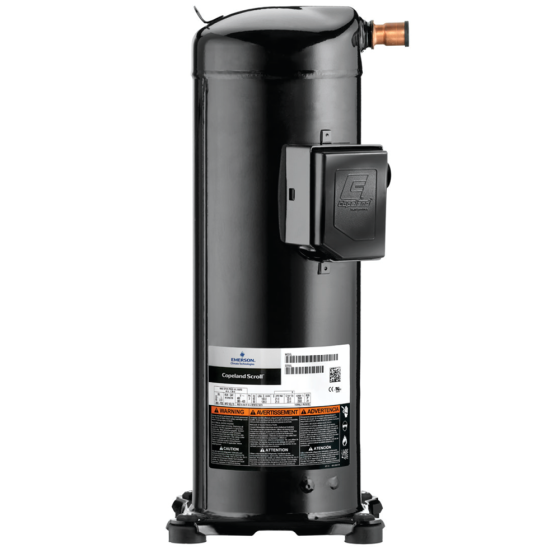

Copeland Hermetic Scroll Compressor R22, 57,000BTU, 208/230Vac, Three Phase
Item
ZR57K3E-TF5-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 57,000
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 27
• LRA: 123
• RLA: 19.3
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.68"
• Discharge Line Size: 1/2"
• Discharge Line Height: 16.13"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 19.3 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 56 to 60kBTU | Suction Line Height | 11.68" | Discharge Line Height | 16.13" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 57000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 86.5 | Exterior Dimensions (D) (inches) | 8.000000 | Exterior Dimensions (W) (inches) | 8.100000 | Exterior Dimensions (H) (inches) | 17.200000 | Shipping Weight (lbs) | 117.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
